Sargent 16-8863J LHR 15 Exit Device Satin Nickel Plated Clear Coated
Item #: 16-8863J LHR 15 by Sargent
$1,500.10 /each
Buying in bulk
Roll over image to zoom in
Sargent 16-8863J LHR 15 Exit Device Satin Nickel Plated Clear Coated
Item #: 16-8863J LHR 15 by Sargent
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door;G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Package Width
7.5"
ANSI Number
5
Device Type
Rim
Dogging Options
Cylinder Dogging
Includes Trim
No
Mechanical Function
Pull Plate Thumb Piece Locking
Minimum Stile Size
4-3/4"
Package Qty
1
Physical Appearance
Wide Stile Pushpad
Base Material
Brass or Bronze
Door Material
Metal or Wood
Package Volume
1710
Package Length
38"
Package Height
6"
BAA Qualified
Yes
Origin
USA
Fire Rated
No
Device Length
42 In.
Door Width
37 In. to 42 In.
Door Thickness
1-3/4" to 2-1/4"
Color Code
619/US15
Color
Satin Nickel Plated Clear Coated
Hand
LHR
Grade
Grade 1
Handing
Left Hand Reverse

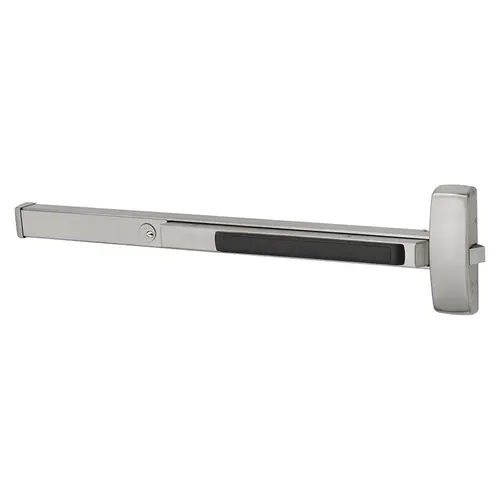

Rim Exit Device, Classroom Thumpiece, Less Trim, 42", Cylinder Dogging, Satin Nickel
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
