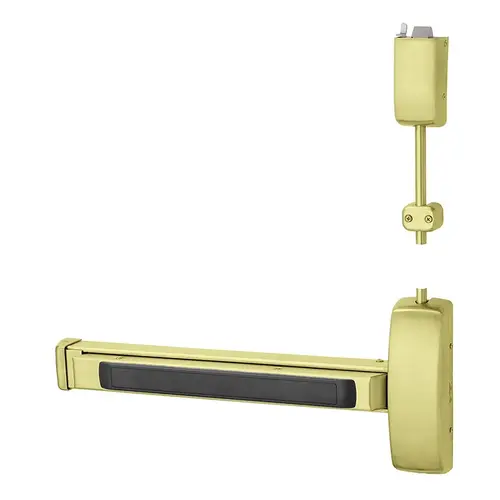

Sargent 16-NB8715E LHR 4 Exit Device Satin Brass
Item #: 16-NB8715E LHR 4 by Sargent
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Door Height
84 In.
Package Volume
1710
Mechanical Function
Lever Passage
Color
Satin Brass
Physical Appearance
Wide Stile Pushpad
Hand
LHR
Grade
Grade 1
Fire Rated
No
Device Type
Surface Vertical Rod
Mechanical Options
Less Bottom Rod
Package Qty
1
Door Width
24 In. to 32 In.
Package Height
6"
Includes Trim
No
Device Length
30 In.
Door Thickness
1-3/4" to 2-1/4"
Strike Top
646
ANSI Number
14
Package Width
7.5"
Color Code
606/US4
Origin
USA
BAA Qualified
Yes
Dogging Options
Cylinder Dogging
Base Material
Brass
Minimum Stile Size
4-1/2" with Trim, 3-1/2" without Trim
Door Material
Metal or Wood
Package Length
38"
Handing
Left Hand Reverse
Rail Size
E Rail for 24" to 32" door widths
Product Overview
Surface Vertical rod Exit Device, Passage, Less Trim, 30", Cylinder Dogging, No Bottom Rod, Satin Brass
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
