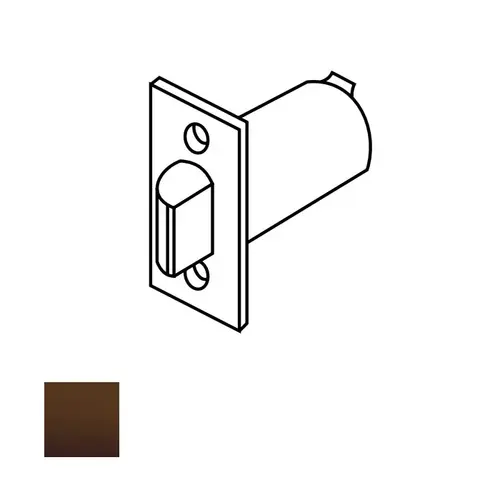

Sargent 07-2433 10B 7-Line Unguarded Latchbolt, Oil Rubbed Dark Bronze

7 LineCylindrical Lever Locks

As the best overall lock in the Grade 2 class, the 7 Line® key-in-lever lock exceeds ANSI/BHMA A156.2 standards for cycling and durability. The 7 Line is designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities.

Features:

• Cycle Test exceeds ANSI/BHMA A156.2 Grade 2 requirements

• Fits modified 161 door preps

• 10 standard functions available

• 5-year limited warranty

Benefits: Reliable:

• Internal through bolts supply strength and stability without requiring additional door preparation

Convenient:

• Incorporates non-handed design for ease of installation and efficient warehousing

Secure:

• Security key systems available and vandal resistant trim optional. Levers are solid one piece cast construction.

Certification Compliance: ANSI:

• Certified ANSI A156.2 Series 4000 - Grade 2

UL:

• UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA:

• All levers conform to ADA requirements for barrier-free accessibility

California Code:

• Levers (L and P) conform to California Administrative Code Title 19 and 24

Specifications: For Doors:

• 1-3/4" (44mm) Thick Door standard

Backset:

• 2-3/4" (70mm) Backset standard

Cylindrical Housing:

• Steel, zinc dichromate finish

Front:

• Wrought brass or stainless steel;
• Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset

Strike:

• Wrought brass or stainless steel
• 2-3/4" Curved Lip Strike standard

Hand:

• Non-handed — B, L, P lever designs
• Handed — G and Y Coastal Series lever designs

Latch:

• Brass 1/2" (13mm) throw

Keys:

• Two, nickel silver

Cylinder:

• Brass, 6-pin, LA keyway standard Can be master keyed or grand master

Finishes:

• 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26, 26D & BSP

Door Prep:

• ANSI A115.2; Specify 20- for 160 Prep

Strength and Durability:

• Cycle Test: Exceeds 2-1/2 times ANSI/ BHMA
• A156.2 Grade 2 cycle requirements

• 5 Year limited warranty. No service required

Convenience:

• Installs in 1 minute or less

• Non-handed design for ease of installation and efficient warehousing with standard lever designs (Except G&Y)

• User friendly packaging

• User friendly instruction

• Convenient installation diagram on box

Design:

• Solid feel and precise lever action

• Decorative Levers
• Coastal Series designs
• Gulfport and Yarmouth

• Levers are solid one piece cast construction

Flexibility:

• Fits modified 161 door preps. Internal through-bolts supply strength and stability without requiring additional door preparation

• 12 architectural grade finishes

• 10 standard functions

• SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Security:

• Security key systems available
• (Signature, XC, Keso, and Keso F1)

Applications:

• Standard duty commercial interior & exterior doors

• Offices

• Commercial interiors

• Medical clinics

• Government facilities

• Public buildings

Innovation:

• SARGENT’s revolutionary MicroShield® available.
• This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.
• EPA and NSF approved and FDA listed
