Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
UNSPSC
31162403
Finish
Satin Nickel
Dimension
4-5/8" x 1-1/8
Material
Steel, Zinc
Hinge Type
Invisible Hinge
Manufacturer Warranty
Limited One-Year Warranty
Corner Type
Round Corner
Hazardous Material
No
Finish code
US15
Design
Invisible Hinges
Series
Invisible Hinges
No of inners
1
Collection
218 Series
Electronic
No
Substrate Type
Zinc and Steel
Product Size
4-5/8"
Duty Level
Heavy Duty
Application
Wood/Metal
Package Quantity
1
UL Listed
Yes
ADA Compliant
No
Commercial/Residential
Commercial/Residential
Door Handing
Universal/Reversible
Interior/Exterior
Interior/Exterior
Number of Mounting Holes
8
Range of Motion
180 degree(s)
Adjustable
False
Mount Type
Wall
MADE IN THE USA
Yes
Assembled Product Width
1.12 in.
Assembled Product Thickness
1.75 in.
GSA Approved
No
Assembled Product Length
4.62 in.
AbilityOne
No
TAA/BAA Compliant
Yes
Dowel Included
False
Product Overview

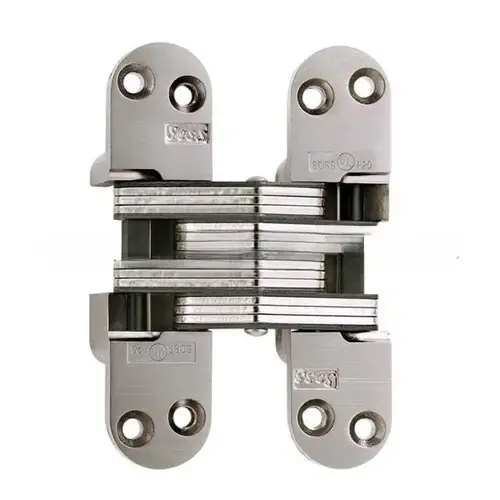

The SOSS 218 Series Invisible Hinge (MPN 218US15) in Satin Nickel finish provides a concealed hinge solution for doors requiring a flush, seamless appearance. Constructed from zinc and steel with nylon links, this hinge is designed for use with wood or metal door applications with a minimum thickness of 1-3/4 inches and up to 2 inches. It measures 4-5/8 inches in height, 1-1/8 inches in width, and 1-41/64 inches in depth. When closed, the hinge remains hidden and tamper-proof; when open, the riveted hinge pin is non-removable, and the hinge allows for a full 180-degree swing. This model carries a 20-minute UL Fire Rating and is ANSI Grade 1 compliant. Wood and machine screws are included for installation. For fire-rated applications, SOSS recommends one hinge for every 60 pounds of door weight.
