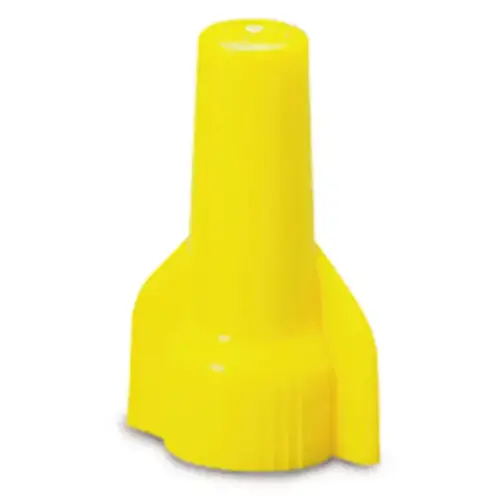

GB 10-084 WingGard 84 Wire Connector, 22 to 10 AWG Wire, Steel Contact, Polypropylene Housing Material, Yellow - pack of 100
Item #: 10-084 by Gardner Bender
UPC #: 032076100841
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
Height
5.46"
Mounting Type
Screw
Length
1-1/32"
Width
23/32"
Warranty
1 Year
Color
Yellow
Wire Size
22 to 10 AWG
UL Listed
Yes
Pack Size
100
Certifications
CSA US, UL
Manufacturer Warranty
1 Year Limited
AWG Wire Size
22 to 10
Certifications and Listings
cUL Listed, UL Listed
Connector Size
Small
Connector Type
Standard
Insulated
No
Number in Package
100
Standard Color Family
Yellow
Winged
YES
Wire Connector Type
Wing
Packaging Type
Boxed
Maximum Operating Temperature
221F
Contact Material
Steel
Defective Code
A
Each Weight
0.400 LB
Hazardous Material
No
Returnable
Yes
Standards
UL Listed
Sub Brand
WingGard
Velocity
C
Contact Coating
Zinc
Nomenclature
10-084 YEL WING WIRE CONNECTOR
Housing Material
Polypropylene
Product Type
Wire Connector
UNSPSC
39121445
Maximum size connection
three 12 AWG wires
Minimum size connection
two 22 AWG wires
Joins
22AWG to 10AWG
Minimum Combo
(2) 22AWG
Maximum Combo
(3) 12AWG
Minimum Compatible Wire Size
2AWG
Resistance Features
Corrosion-Resistant
Vendor Drop Ship
N
Wire Connector Style
Wing
Product Overview
YELLOW WINGED WIRE CONNECTORS
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
