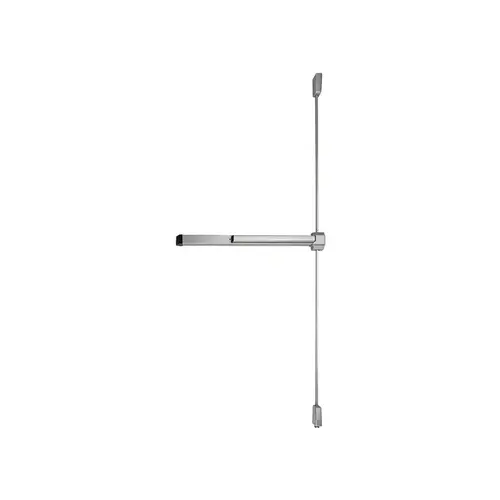

Von Duprin 2227EO 3 695 LBR 2227 Series - 3 ft Wide Stile Pushpad Surface Vertical Rod Exit Device Dark Bronze Anodized
Item #: 2227EO 3 695 LBR by Von Duprin
Brand: Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
- Device centerline from finished floor: 39 13/16" (1011 mm)
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
- Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
Door Height
84 In.
Package Volume
1929.375
Mechanical Function
Exit Only
Color
Dark Bronze Anodized Aluminum
Physical Appearance
Wide Stile Pushpad
Case Width
16"
Product Width
3.75"
Hand
Non-Handed
Grade
Grade 1
Fire Rated
No
Product Height
4.25"
Device Type
Surface Vertical Rod
Strike Bottom
304L
Case Length
41"
Mechanical Options
Less Bottom Rod
Package Qty
1
Door Width
25 7/8 In. - 36 In.
Package Height
10.5"
Includes Trim
No
Device Length
36 In.
Door Thickness
1 3/4 In. - 2 1/4 In.
Case Height
11.75"
Strike Top
299 / 248L-4
Package Width
5"
Case Volume
7708
Color Code
313
Origin
USA
BAA Qualified
Yes
Product Length
33.125"
Dogging Options
Hex Key Dogging
Base Material
Aluminum
Minimum Stile Size
Wide
Door Material
Metal or Wood
Package Length
36.75"
Finish
695 - Dark Bronze
Handing
RHR - Right Hand Reverse
Stile Type
Wide Stile
Latch Throw
3/4"
Dogging
HD - Hex Key Dogging
Less Bottom Rod
Yes
Door Handing
Non-Handed
Product Size
36"
Door Thickness Range
1-3/4"
Center Case Dimensions
4-1/4" x 1-3/8" x 2-3/8"
Product Projection
3-3/4"
Trim Function
EO - Exit Only
Lever
17 Lever
Product Style
Push Pads
AX - Accessible Device
No
Electrified Options
LX-RX-LC - Latch bolt monitoring, request to exit low current
Dogging Configuration
Hex Key Dogging
Latch Retraction
HD-QELX - Quiet electric latch retraction with hex dogging for AX device
Product Overview
Surface Vertical Rod Exit Device, Exit Only, 36 In., Less Bottom Rod, Dark Bronze
2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 _ 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8î.
UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
