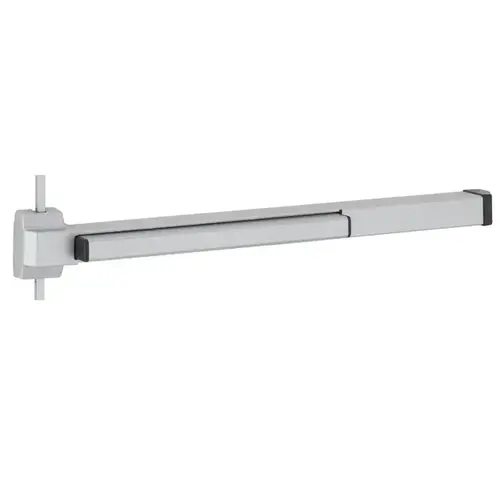

Von Duprin 2227EO-F-4-SP28 2227EO-F Surface Vertical Rod Fire Exit Device - 4' Sprayed Aluminum
Item #: 2227EO-F-4-SP28 by Von Duprin
UPC #: 840067623572
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
- Device centerline from finished floor: 39 13/16" (1011 mm)
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
- Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
Door Material
Metal or Wood
Base Material
VARIES
Strike Top
229F
Strike Bottom
304L
Special Marks
Fire rated 1-1/2 Hours {B} {D}
Product Width
3.75"
Product Length
45.125"
Product Height
4.25"
Physical Appearance
Wide Stile Pushpad
Package Qty
1
Minimum Stile Size
Wide
Mechanical Options
Fire Rated Device
Mechanical Function
Exit Only
Includes Trim
No
Device Type
Surface Vertical Rod
Case Width
16"
Case Volume
9353
Case Height
11.75"
Package Width
5"
Package Volume
2585.625
Package Length
49.25"
Package Height
10.5"
BAA Qualified
Yes
Origin
USA
Fire Rated
1-1/2 Hours {B} {D}, Yes
Door Height
84 In.
Device Length
48 In.
Door Width
31 7/8 In. - 48 In.
Door Thickness
1 3/4 In. - 2 1/4 In.
Case Length
49.75"
Color Code
689/US28
Color
Aluminum Painted
Hand
Non-Handed
Grade
Grade 1
Finish
Sprayed Aluminum
Warranty
1 Year From Date of Purchase.
Pack Size
1
Builders Hardware Product Type
Exit Devices
Door Handing
Universal/Reversible
General Material
Brass
Hardware Finish Family
Metal
Product Depth (in.)
49.25
Product Height (in.)
10.5
Product Width (in.)
5
UNSPSC
31162800
Aluminium Bottle Contents
Swinging
ProductType
Manual
Application
Double Door; Clinic or Healthcare; Multi-Family; Retail or Commercial Market
Length
4
Function
Exit Only
Bolt Throw
Top and Bottom bolt 5/8" Throw
Stile
Wide Stile
Finish Description
Aluminum Painted
ANSI Function
01
Dogging Options
Less Dogging
Latch Type
Deadlocking
ADA Compliant
No
Finish Family
Aluminum
Included Components
Fasteners and Through Bolts
Door Style Width
3-5/8" (92 mm)
Trim Options
EO Exit Only
Standards
ANSI/BHMA A156.3-2014 Grade 1 certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC-S104; CAN/ULC-S132
Stile Width
3-5/8 Inch
Trim Style
EO
Center Case Dimensions
4-5/32" x 3-3/16" x 2-3/8"
Device Bar Projection
Push Bar Neutral: 3 11/16"; Push Bar Depressed: 2-7/8"
Device Rating
Fire Exit Hardware
For Door Height
7 Foot
Device Trim Function
No Outside Trim
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4" up to 2-1/4"
Device Centerline From Finished Floor
39-13/16 Inch
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
For Door Width
4 Foot
Recommended Door Undercut
1/4" (7 mm) from Finished Floor Recommended
Mechanism Case Dimensions
2" x 2-3/8"
Product Type
Exit Device
Series
2227 Push Bar
Manufacturer Parent
Allegion
Sub-Series
EDT_Surface_Vertical_Rod_Devices_von_duprin_135
Product Overview
Surface Vertical Rod Exit Device, Exit Only, 48 In., Fire Rated, Aluminum
2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 _ 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8î.
UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
