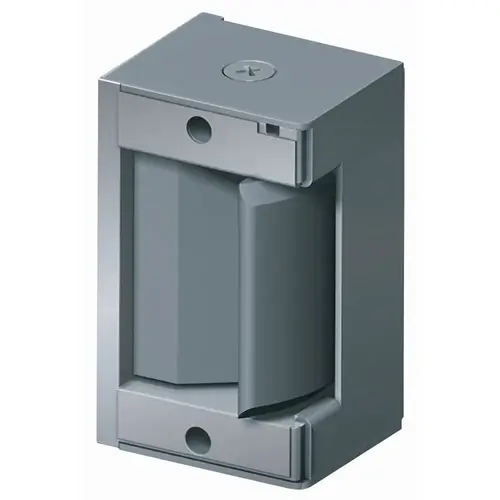

Trine 3024Click To Copy Mechanism Electric Strike - 24v DC - Fail Secure Aluminum Painted

3000 Series MechanismSmallest Electric Strike in the World

The small 3000 series strikes pack a powerful punch. A BHMA Grade 1 Mechanism with up to 1,500 lbs of holding force. This is the most powerful strike you can get, a BHMA Grade 1 electric strike with just a 1" total backset installation could not be easier.

Features:

• GRADE 1

• 500,000 + life cycles

• 1,500 + lbs. holding force (1,200 lbs. for 334)

• Dynamic Force 70 ft/lb.

• Solid stainless steel latch and in the device body.

• Accepts a bolt with a up to 5/8" throw

• Non-handed Unit (except 458, 478 LO/RO)

• Fail secure - standard action (unlocks with power)

• Fail safe - "RS" (locks with power)

• Mechanism spacers increase cavity depth up to 1/8"

• Available in 12 or 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) - must use LC100

Mechanism Electrical Characteristics:

• Voltage - 12DC
• Current/Amps - 0.480
• Ohms (Ω) - 25.0
• Duty - Intm.
• Sound - Silent
• Wire Color - Blue

• Voltage - 24DC
• Current/Amps - 0.240
• Ohms (Ω) - 100.0
• Duty - Intm.
• Sound - Silent
• Wire Color - White

Specifications: Mortise Type:

• 1" backset

Solid Cast Latch:

• Stainless Steel

Cavity:

• Width 5/8"
• Height 1-1/8"
• Depth 1/2"

• All stainless steel locking parts

• BHMA - A156.31, 2001

• BHMA Grade 1 - All models (except 334)

• BHMA Grade 2 - 334

Options: Piezo Buzzer for "Standard Models":

• BZ-12: Audible buzzer for 12DC power
• BZ-24: Audible buzzer for 24DC power
