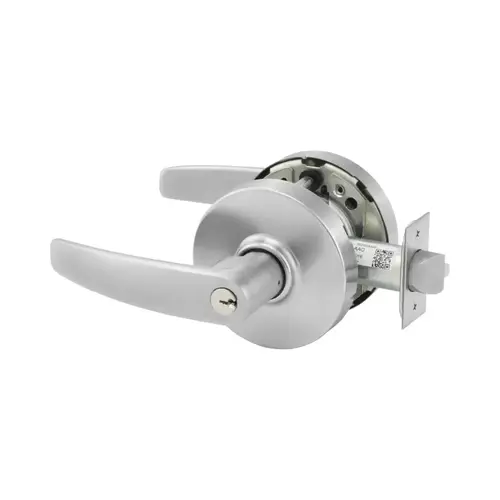

Sargent 28-10G26 LB 26D Storeroom Double Cylinder Lever Lock Grade 1 with B Lever and L Rose with LA Keyway and ASA Strike Satin Chrome Finish
Item #: 28-10G26 LB 26D by Sargent
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Installs in one minute or less
- Fits a variety of door preparations with adaptable through-bolt positioning
- Adaptable to fit multiple through-bolt positions
- SARGENT uses flexible manufacturing processes to accommodate special applications
Grade
Grade 1
Thickness
1-3/4" - 2"
Application
Heavy Duty
Hand
Not Handed
Color
Satin Chrome
Color Code
626/US26D
Case Length
20.75"
Keyway
LA
Function
Storeroom Double Cylinder
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
4.25"
Package Length
8.25"
Package Volume
249.8203125
Package Width
7.125"
ANSI Function
F91 - Store Door
Bolt Protection
1/2"
Case Height
9"
Case Volume
2801.25
Case Width
15"
Dust Box
None
Key(s)
Cut
Latch Backset Dim
2-3/4"
Latch Number
10-3192
Latch Type
Dead Latch (Guarded)
Lever/Knob Design
B - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
L - Rose
Screws
Combination
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
808
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Brass or Bronze
Finish
Satin Chrome
Backset
2-3/4" Backset
Strike
ASA Strike
Design
B Lever and L Rose
Series
10 Series
Warranty
7 Year Limited
Handle Type
Lever
Rose Diameter
3-1/2 Inch
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
B-Lever
Strike Size
4-7/8" x 1-1/4"
Cylinder Material
Brass
Rose/Escutcheon Trim
L-Rose
Standards
ANSI/BHMA A156.2 (2017) Series 4000 Grade 1; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
Cylinder Type Used
Conventional
Function Description
: Deadlocking latch bolt by levers. Key in either lever locks/unlocks both levers
Front Size
2-1/4" x 1-1/8"
Function Family
Store Door
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Solid Cast (Lever); Heavy Wrought (Rose)
Minimum Stile Width
4-1/2 Inch
Features
Installs in One Minute or Less; Adapts to Fit Multiple Thrubolt Positions; Pre-Assembled Components Make Installation Quick and Easy; Latch by Either Lever; Key in Either Lever Locks or Unlocks Both Levers
Product Type
Cylindrical Lock
Manufacturer Parent
Assa Abloy
Lever Length-Inches
5 Inch
Latch Corner
Square
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
Sargent-28-10G26-LB
Product Overview
Storeroom Double Cylinder Lever Lock Grade 1 with B Lever and L Rose with LA Keyway and ASA Strike Satin Chrome Finish
