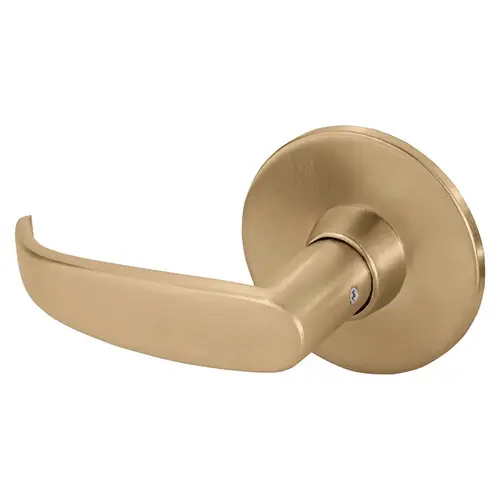

Sargent 28-11G15-3 LP 10 28-11G15-3 LP 10 Cylindrical Lock Satin Bronze
Item #: 28-11G15-3 LP 10 by Sargent
$568.72 /each
Buying in bulk
Roll over image to zoom in
Sargent 28-11G15-3 LP 10 28-11G15-3 LP 10 Cylindrical Lock Satin Bronze
Item #: 28-11G15-3 LP 10 by Sargent
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
- Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
- Retrofits any standard cylindrical lock doorprep and is non handed
- Simple cylinder removal provides easy change outs
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 13 architectural grade finishes and Microshield® antimicrobial coating
- 10 year limited warranty
Base Material
Bronze
Strike Width
1-1/4"
Strike Type
ASA
Strike Number
808
Strike Height
4-7/8"
Special Marks
Fire rated 3 Hours {A}
Screws
Combination
Rose/Escutcheon Design
L - Rose
Package Qty
1
Lock Face Size
2-1/4" x 1-1/8"
Lever/Knob Design
P - Lever
Latch Type
Dead Latch (Guarded)
Latch Number
11-2106
Latch Backset Dim
2-3/4"
Dust Box
None
Case Width
15"
Case Volume
2801.25
Case Height
9"
Bolt Protection
1/2"
Package Width
7.125
Package Volume
249.8203125
Package Length
8.25
Package Height
4.25
BAA Qualified
Yes
Origin
United States
Fire Rated
3 Hours {A}
Function
15-3-Exit or Communicating
Case Length
20.75"
Color Code
612/US10
Color
Satin Bronze
Hand
Not Handed
Application
Extra Heavy Duty
Thickness
1-3/4" - 2"
Grade
Grade 1
Exit Function, Grade 1, Cylindrical Lever Lock, LP Design, Satin Bronze
The SARGENT¬ 11 Line sets a higher standard for Grade 1 bored-in locks. The unique T-Zone¬ construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latch far exceeding the 156.2 Series 4000 Grade 1 standards like no other lock can.
The SARGENT® 11 Line sets a higher standard for Grade 1 bored-in locks.
The unique T-Zone® construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals.
