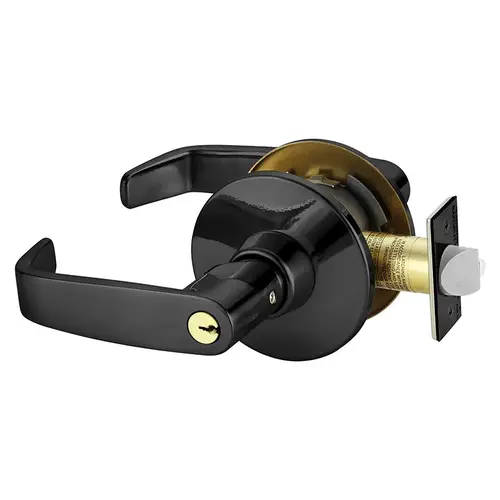

Sargent 28-11G37 LL 20D Cylindrical Lock Dark Oxidized Statuary Bronze Clear Coated
Item #: 28-11G37 LL 20D by Sargent
$660.93 /each
Buying in bulk
Roll over image to zoom in
Sargent 28-11G37 LL 20D Cylindrical Lock Dark Oxidized Statuary Bronze Clear Coated
Item #: 28-11G37 LL 20D by Sargent
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
- Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
- Retrofits any standard cylindrical lock doorprep and is non handed
- Simple cylinder removal provides easy change outs
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 13 architectural grade finishes and Microshield® antimicrobial coating
- 10 year limited warranty
Grade
Grade 1
Thickness
1-3/4" - 2"
Application
Extra Heavy Duty
Hand
Not Handed
Color
Dark Oxidized Statuary Bronze Clear Coated
Color Code
624/US20A/US20D
Case Length
20.75"
Keyway
LA
Function
37-Classroom
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
4.25"
Package Length
8.25"
Package Volume
249.8203125
Package Width
7.125"
ANSI Function
F84 - Classroom
Bolt Protection
1/2"
Case Height
9"
Case Volume
2801.25
Case Width
15"
Dust Box
None
Key(s)
Cut
Latch Backset Dim
2-3/4"
Latch Number
11-2106
Latch Type
Dead Latch (Guarded)
Lever/Knob Design
L - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
L - Rose
Screws
Combination
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
808
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Bronze
Classroom, Grade 1, Cylindrical Lever Lock, LL Design, Statuary Dark Bronze, Clear Coated
The SARGENT¬ 11 Line sets a higher standard for Grade 1 bored-in locks. The unique T-Zone¬ construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latch far exceeding the 156.2 Series 4000 Grade 1 standards like no other lock can.
The SARGENT® 11 Line sets a higher standard for Grade 1 bored-in locks.
The unique T-Zone® construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals.
