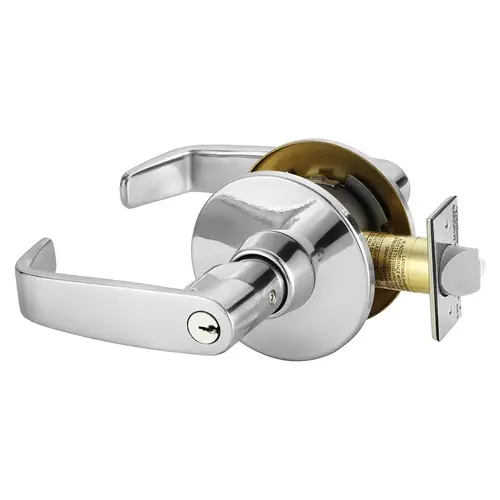

Sargent 28-11G44 LL 26 Service Station Tubular Bored Lock Grade 1 with L Lever and L Rose with ASA Strike and LA Keyway Bright Chrome Finish
Item #: 28-11G44 LL 26 by Sargent
$740.51 /each
Buying in bulk
Roll over image to zoom in
Sargent 28-11G44 LL 26 Service Station Tubular Bored Lock Grade 1 with L Lever and L Rose with ASA Strike and LA Keyway Bright Chrome Finish
Item #: 28-11G44 LL 26 by Sargent
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
- Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
- Retrofits any standard cylindrical lock doorprep and is non handed
- Simple cylinder removal provides easy change outs
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 13 architectural grade finishes and Microshield® antimicrobial coating
- 10 year limited warranty
Thickness
1-3/4" - 2"
Strike Number
808
Package Volume
249.8203125
Latch Number
11-2110
Color
Bright Chrome
Case Width
15"
Function
Service Station
Latch Type
Dead Latch (Guarded)
ANSI Function
F92 - Service Station
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Key(s)
Cut
Dust Box
None
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Cylinder Type
Conventional Cylinder
Lock Face Size
2-1/4" x 1-1/8"
Application
Extra Heavy Duty
Case Length
20.75"
Package Qty
1
Package Height
4.25"
Screws
Combination
Keying
Keyed Different
Case Height
9"
Package Width
7.125"
Bolt Protection
1/2"
Case Volume
2801.25
Color Code
625/US26
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
L - Rose
Base Material
Brass or Bronze
Keyway
LA
Strike Height
4-7/8"
Lever/Knob Design
L - Lever
Package Length
8.25"
Finish
Bright Chrome
Backset
2-3/4" Backset
Strike
ASA Strike
Design
L Lever and L Rose
