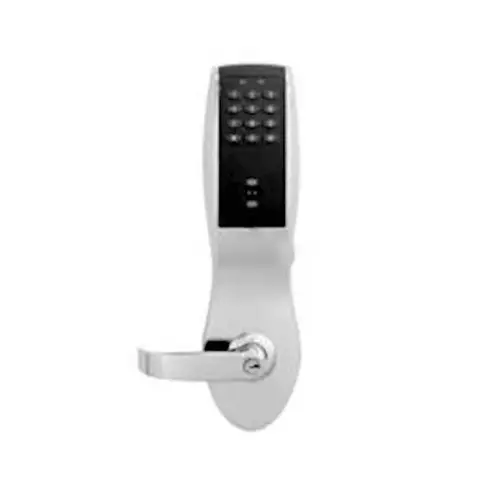

Sargent 28-G1-10G77 LUL 26DClick To Copy SGT PROFILE LEVER X 808 X KEYPAD X 2 000 USERS, Satin Chrome

Profile Series v.G1.5Stand Alone Access Control Products

The Profile Series v.G1.5 are standalone access control products that offer a broad selection of technologies and programming features combined with ANSI/BHMA Grade 1 mechanical locks. Many variations of the product, from the G1-LU series, which offers keypad only, to the full-featured G1-TP Series, which includes keypad, proximity and RF technology, are available. The locks are programmed via infrared data transfer and/or keypad, and all units utilize a battery-powered microprocessor-based controller with non-volatile memory to preserve user codes. Available in 8200 Series mortise lock, 10 Line cylindrical lock and 80 Series rim and mortise exit device configurations, these locking devices are UL Listed for use on fire doors*. All products with the keypad feature offer access codes which may vary from 1 to 6 digits and utilize a master code for keypad programming. Various locking modes allow the operation of the lock to be tailored to each opening and individual user, such as panic, adjustable momentary unlock and passage.

Standard Features:

• 2000 users per lock

• 2000 event audit trail

• Powered by 6 AA batteries

• Low battery indication – four chirps after code entry

• Estimated battery life for non-RF models is 75,000 cycles

• Estimated battery life for RF models is 4-1/2 mos

• Supports Remote unlocking

• UL Listed for Fire Doors

• Adjustable unlock time from 1 - 99 seconds

• Locks with keypads support 1 - 6 digit codes

• Moisture resistant coating on electronics

• Entry of three wrong user codes in succession disables all codes for ten seconds (selectable)

• UL Listed to Canadian safety standards

• Forced and propped door option

• Weather seal gasket, conduit and shroud recommended for use on exterior doors (optional, order separately)

• Remote power and request to enter available – requires wire harness (52-3010) and hard wiring

Entry Code Features:

• One master code – forced master code from factory default assigns emergency, supervisory and user codes and allows entry when deadbolt is thrown (mortise locks)

• Multiple supervisory codes – allow temporary lockout of selected users, change unlock time duration, request infrared interrogation output and add user codes

• Multiple emergency codes – allows entry when dead bolt is thrown (mortise locks). Unlocks after the low battery indication period has passed and user codes no longer operate lock

• Temporary codes by number of uses (1-500), start-and-stop dates or total days after first use (24 hour specific)

• Maintained (passage) code – unlocks for extended periods of time

Keypad Features:

• LEDs on unit indicate status – green indicates unlocked; yellow indicates programming mode

Proximity Features:

• Supports all HID 125 KHz bit formats by Keypad Presentation or when using proximity enrollment station ES-G1 with SoloPlus software

• Supports 26, 34, & SARGENT 1000 (35 bit) HID formats with SofLink Plus™ version 4.0 or higher, and SoloPlus software programming

Clock/Time Features:

• Real time clock with date & time

• Up to 8 time zones per lock

• Supports holidays (16 single & 16 blocked)

• Supports Daylight Savings Time

RF Technology Features:

• UL and cUL Listed for fire doors

• Typical operating distance of 35 to 75 feet on inside of door; 10 to 25 feet on outside of door*

• Multiple RF Fobs may be programmed into a single lock

• LED indicator on inside escutcheon shows when RF lock is actuated

• Primary modes of RF Technology: Passage, Unlock/Relock and Panic

Notes:

• v.G1.5 controllers replace v.G1 controllers. Product is still ordered as G1- option. Controllers are labelled "G1.5"

• v.G1.5 controllers will work with SofLink Plus software versions 3.0 and above, and SoloPlus software, as well as provide additional keypad programming features

• * Operating distance may vary depending on building construction
