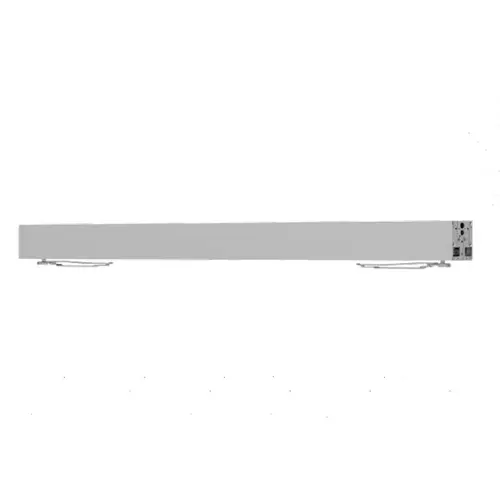

LCN 2853-STD/CP 72IN ANCLR Door Operator Satin Aluminum Clear Anodized
Item #: 2853-STD/CP 72IN ANCLR by LCN
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 2850 series operator is shipped with motor gearbox, control box, arm, bottom pivot, header, and mounting hardware. Actuators available separately, see pages 199-215.
- Simultaneous pair, overhead concealed.
- Meets ADA, requirements (power mode only).
- Handed product.
- 72” header length is standard. Specify other length 60” to 98” max. Consult factory regarding this option.
- Fixed or breakaway stop available (center pivot arm).
- Adjustable hold open period of 1 to 32 seconds in automatic or manual mode.
Grade
Grade 1
Type
Concealed Overhead
Hand
Non-Handed
Color
Satin Aluminum Clear Anodized
Color Code
628/US28
BAA Qualified
Yes
Package Volume
0
Mounting Location
In Header
Package Qty
1
Base Material
Aluminum
Standard Center Pivot Arm Senior Swing Electromechanical Door Operator, Simultaneous Pair 72" Header, Clear Anodized
The 2850 Senior Swing by LCN is an ADA door operator that is a two in one swing door operator designed for double door applications. The Senior Swing when activated, opens doors automatically for wheelchair access, yet allows manual operation for pedestrian traffic.
The 2850 Series is an ADA compliant, two-in-one, swing door operator.
LCN's 2850 Series is a Senior Swing oeprator that when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic. This series is UL approved for fire doors.
