3 Point Top Bolt, Deadbolt and Bottom Bolt Exit Control Lock

Roll over image to zoom in

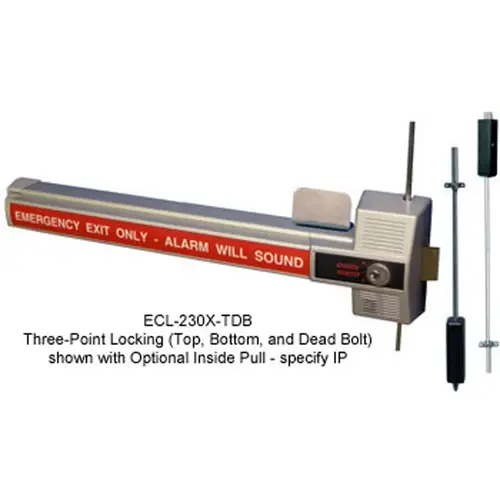

DETEX ECL-230X-TDB 3 Point Top Bolt, Deadbolt and Bottom Bolt Exit Control Lock

Item #: ECL-230X-TDB by DETEX

See reviewsSee reviews
In Stock

$1,294.53

/each
SAVE UP TO 129.45

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Function

Exit Only

Series

Exit Control Locks Series

Design

Three-Point

Handing

Non Handed

Strike

ECL437K Strike

Fire Rated

No

Device Type

Multi-Point

Electric Options

Alarm Kit Battery Powered

Product Type

Exit Alarms

exit device type

Vertical Rod

Alternate Part Number-1

147819

Manufacturer Parent

Detex

Device Rating

Panic Exit Hardware

Electrified Features

100 Decibel Alarm Powered by 9 Volt Battery

Hand

Non-Handed

Sub-Series

ECL-230X-TDB

Trim Style

No Trim

ADA Compliant

No

Application

Single and Double Door

Function Family

Part/Component

Standards

UL 305 Listed; UL1034-34 Temperature Section 34; UL 1034-54 Dust Section 54; ADA; NFPA 101 for Life Safety, CA Title 19; ANSI/BHMA A156.3 Grade 2; California State Fire Marshall 4140-0127:102; Hurricane Listed (H) Florida NOA 15-0603.15

Door Thickness

1-3/4" to 2-1/4"

Features

3-Point, 1" Throw Dead Bolt Lock and 3/4" Throw Top and Bottom Locks; Saw Resistant Dead Bolts; Corrosion Resistant Alloy Lock Body; Durable Photo-Luminescent Sign; Resetting the Alarm can only be Accomplished With a Control Key

Strike Type

Surface or Flush Reversible Strike

Warranty

10 Year Mechanical; 3 Year Electrical Limited

For Door Width

36" to 48"

Door Material

Wood; Hollow Metal

Included Components

9V Battery

Product Overview

Alarmed Deadbolt Panic Hardware, Three Point Top/Bottom Bolt and Deadbolt, Gray

The ECL-230X is a code compliant, battery alarmed, rugged dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits.

The code compliant, heavy-duty ECL Series of exit control lock has your back door covered.
