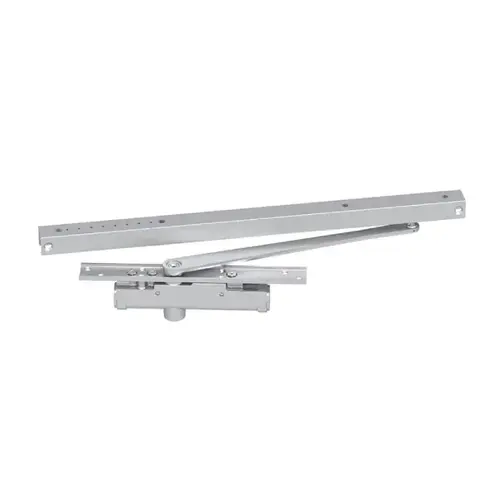

LCN 3133-STD RH AL 3130 Series Size 3 Grade 1 Sprayed Aluminum Right Hand Standard Arm Concealed Door Closer
Item #: 3133-STD RH AL by LCN
UPC #: 840067658888
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack
- Sized cylinders for interior doors to 3’2”
- Handed for right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coated finish
- Optional plated finish on arm and fasteners
- Optional SRI primer for installations in corrosive conditions
- Consult factory for installation with pivots
Grade
Grade 1
Type
Concealed Door
Hand
RH
Color
Sprayed Aluminum
Color Code
689/US28
Hold Open
Without Hold Open
Closer Size
3
BAA Qualified
Yes
Package Volume
0
Cold Weather Fluid
Yes
Degree Swing
140 Deg.
Mounting Location
In Door
Package Qty
1
Base Material
VARIES
Handing
Right Hand
Pack Size
1
Manufacturer Warranty
15 Year Limited Warranty
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Commercial/Residential
Commercial
General Color Family
Metallics
General Material
Steel
Hardware Finish Family
Metal
Maximum Door Range (deg.)
110
Product Depth (in.)
4
Product Height (in.)
24
Product Width (in.)
4.5
Mounting
Top Mount
Warranty
15 Year Limited Warranty
UNSPSC
30171514
Spring Size
3
Function
STD-Standard Arm
Mount
Concealed (In Door)
Maximum Door Weight
225 lbs.
Finish Description
Aluminum Painted
Product Height
1-3/8 Inch
Product Length
8-3/4 Inch
Product Width
3-1/4 Inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Standard Cylinder; Standard Cover; Standard Arm; Track Roller; Standard Track; Self-Reaming and Tapping Screws
Minimum Door Thickness
1-3/4 Inch
Standards
Grade 1 - ANSI A156.4; UL 10C; BAA
Closer Arm Type
Standard Arm and Track
Hold-Open Type
100° Hold Open
Closer Fluid
All Weather Fluid
Closer Piston Diameter
1-1/8 Inch
Function Family
Hold Open Door Closer
For Door Width
Exterior Door Width - Size 3 (28" - 30"); Interior (34" - 38")
Closer Action
Single Acting
Fastener Type
Wood Screws and Torx Security Screws
Features
Full Complement Bearing; The Single Lever Arm and Roller Assembly Provide Smooth Quiet Door Control; Cast Iron Body
Product Type
Door Closer/Holder/Stop
Series
3130 Series
Manufacturer Parent
Allegion
Closer Hold-Open
false
Sub-Series
3133-STD-AL-RH
Finish
Aluminum
Dimension
11-3/4" x 1-3/8" x 3-1/4" Body, 22-1/2" x 1-1/4" x 1-1/4" Track
Closer Type
Concealed Closer
Hazardous Material
No
Product Overview
The 3130 Series closers are designed for concealment within 1-3/4 in. interior doors in medium- to high-traffic areas. It meets ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A concealed forged steel single-lever arm and a low-friction track and roller assembly for the 3130 Series creates optimal door control, with separate regulation of the general closing speed and latching speed. It is UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for the closers include a cast iron cylinder, 1-piece forged steel piston, high-efficiency, full-complement, low-friction bearing, tamper-resistant regulating screws and all-weather fluid.
- Standard arm
- Size 3
- Door mount
- Right hand
- 140° swing
- Not applicable
- 15-year limited warranty
- ANSI A156.4, grade 1, UL 10C, ADA
- Wood and machine screws
