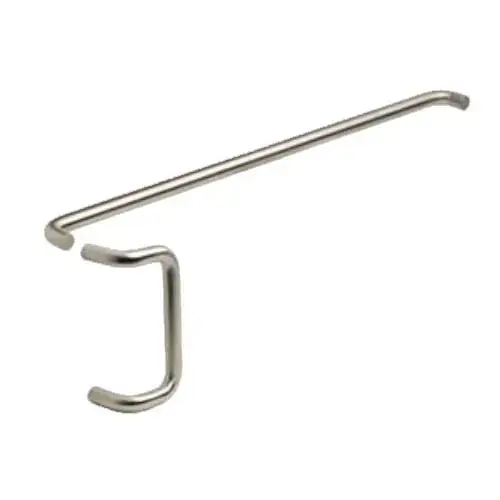

IVES 9190HD-33-2 US32D 33" Push Bar and 12" Offset Pull Combo, 1" Round and 2-1/2" Projection Satin Stainless Steel Finish

Item #: 9190HD-33-2 US32D by IVES

Brand: IVES

See reviewsSee reviews
See reviews summary
In Stock

$432.15

/each
SAVE UP TO 43.21
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available

Finish: Satin Stainless Steel

Size: 12"

8"
10"
12"
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Part of the Schlage Family of Products
  • All Mounting Hardware Included
  • Made with Durable Materials
  • Easy Installation
  • Limited 1 Year Warranty

Series

Commercial Series

Handing

Non Handed

Finish

Satin Stainless Steel

Color Code

630/US32D

Package Qty

1

Base Material

Stainless Steel

Product Type

Misc. Stock

Length

33"

Center to Center

12"

ANSI/BHMA Standards

ANSI A156.06

Substrate Type

Brass, Stainless Steel

Duty Level

Heavy Duty

Hang Type

Offset Hung

Product Overview
9190HD SOLID 90 degree OFFSET PULL/PUSH BAR COMBO
  • Available in standard lengths of 28" and 33".
  • Also available in whole 1" increments from 25" to 45".
  • Other lengths available as engineering special, consult customer service.
IVES ARCHITECTURAL PULLS AND PUSH BARS OVERVIEWIves offers various pulls to meet opening and project needs, no matter the door's design, size, type or location. Whether offset or straight, there is a pull that is tested to withstand high-traffic areas and abuse for any application.FEATURES AND BENEFITS
  • Exceeds industry and ANSI 156.06 standards
  • Made of heavy-duty, solid bar stock or castings, including stainless steel, brass and aluminum
  • Come standard with heavy-duty (HD) machining and mounting hardware
  • Line includes Ives ADA-compliant pulls (EZ) that have a door-to-pull clearance of 2-1/2" or greater
  • EZ pulls come standard with 316 Series stainless, which makes them highly recommended for all external applications
DESIGNS & FINISHESSizes
  • Pull sizes are determined by the center-to-center distance between the mounting locations.
    • For example: a 12" pull has 12" between the mounting locations; the overall pull length will be longer. See the pull model pages for specific size information.
Finishes
  • Available in aluminum, brass and stainless steel substrates
  • Various BHMA standard finishes are available, including antimicrobial
  • See individual models in the catalog for specific finishes
  • Custom finishes are available as an engineering special; consult Customer Service to order
MOUNTING HARDWARE OPTIONSWith each Ives architectural pull, various mounting schemes are available that exceed industry standards. The pulls also come standard with heavy-duty machining and mounting hardware. For the available optional mounting hardware, click here.Mounting options include:
  • Standard mount (STD) thru-bolt with a decorative washer
  • Concealed mounts:
    • For aluminum doors (A)
    • With pull plates (G)
    • Wood doors (I)
    • Hollow metal doors (L)
  • Back-to-back mounts:
    • For 8102 pulls only (J)
    • For 8121 pulls only (K)
    • Hollow metal and wood door applications (N)
    • Glass doors (P)
  • Push/pull combo mounts:
    • Decorative (NO)
    • Standard (NS)
    • Decorative for glass doors (PQ)
  • Security thru-bolt with standard washer (X)
RESOURCES & DOWNLOADSIves Full Line Catalog
