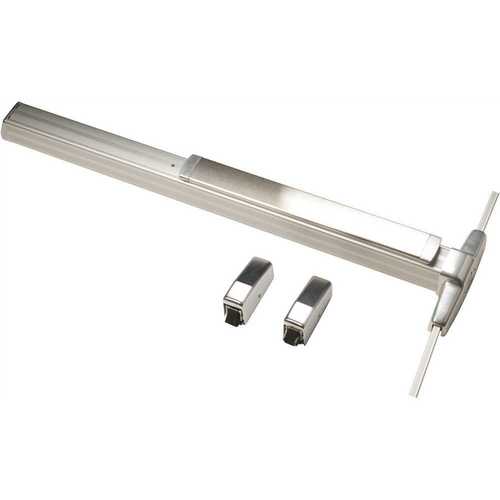

Von Duprin 3327A-EO 4 US28 33A Series Surface Vertical Rod Exit Device - 4'
Item #: 3327A-EO 4 US28 by Von Duprin
UPC #: 840067623732
In Stock $2,185.16 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
- Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm)
- Top & bottom latch: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7'(2134mm) door Top rod length is 34 15/16" (887mm) Bottom rod length is 31 1/4" (794mm) Extension rods available 1' (205mm) or 3' (914mm) for doors over 7' One piece top rod available for 8' (2438mm) -10' (3048mm) door
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) #325 SNB furnished for top and bottom latches
Grade
Grade 1
Hand
Non-Handed
Color
Satin Aluminum Clear Anodized
Color Code
628/US28
Door Thickness
1-3/4 In.
Door Width
34 In. - 48 In.
Device Length
48 In.
Door Height
84 In.
Fire Rated
No
Device Type
Surface Vertical Rod
Dogging Options
Hex Key Dogging
Includes Trim
No
Mechanical Function
Exit Only
Minimum Stile Size
Narrow
Package Qty
1
Physical Appearance
Narrow Stile Pushpad
Strike Bottom
304L
Strike Top
266/248L-4
Base Material
Aluminum
Door Material
Metal or Wood
UNSPSC
31162800
Product Width (in.)
5
Product Height (in.)
10.5
Product Depth (in.)
40
Hardware Finish Family
Metal
General Material
Brass
Door Handing
Universal/Reversible
Builders Hardware Product Type
Exit Devices
Pack Size
1
Warranty
3-year warranty
Finish
Aluminum, Anodized
For Door Thickness
1-3/4" to 2-1/4"
Device Trim ANSI Function
01
Manufacturer Parent
Allegion
Stile Width
2 Inch
Device Rating
Panic Exit Hardware
Finish Description
Satin Aluminum
Stile
Narrow Stile
For Door Height
7 Foot
Function
Exit Only
Latch Type
Deadlocking
Function Description
Exit Only - No Trim
ANSI Function
01
Sub-Series
EDT_Surface_Vertical_Rod_Devices_von_duprin_58
Trim Style
EO
ADA Compliant
No
Device Centerline From Finished Floor
39-13/16 Inch
Center Case Dimensions
8-13/16" x 2-13/32" x 1-9/16"
Application
Double Doors; Higher Education; K-12 Schools; Hospital; Hospitality; Government Buildings
Length
4
Device Trim Function
No Outside Trim
Function Family
Exit Only-No Trim
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC-S132
Device Bar Projection
3-13/16" Pushbar Neutral; 3-1/16" Pushbar Depressed
Trim Options
EO Exit Only
Product Type
Exit Device
Features
Modular Design Allows Ability to Upgrade Device to Keep Up With Changing Technology; Designed for High Use and Abuse in Institutional Applications Like Schools, Hospitals and Government Facilities
Bolt Throw
Top and Bottom bolt 5/8" Throw
Mechanism Case Dimensions
2-1/4" x 2-1/4"
For Door Width
2 Foot 8" to 4 Foot
Recommended Door Undercut
1/4"
Included Components
Fasteners and Through Bolts
Finish Family
Aluminum

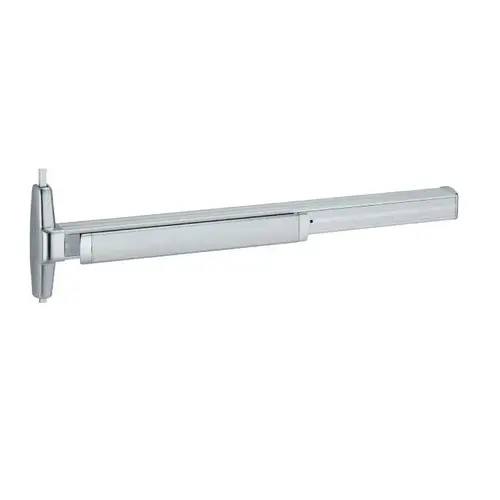

Narrow Style, Surface Vertical Rod Exit Device, Satin Aluminum Clear Anodized
3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (Signal Switch) option is used. 3327A/3527A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'. Hex key dogging standard. standard rods accommodate 7' door.
Devices are ANSI A156.3 – 2001 Grade 1.
The 3327A has grooved case and the surface vertical rod device is non-handed except when the SS (signal switch) option is used.
