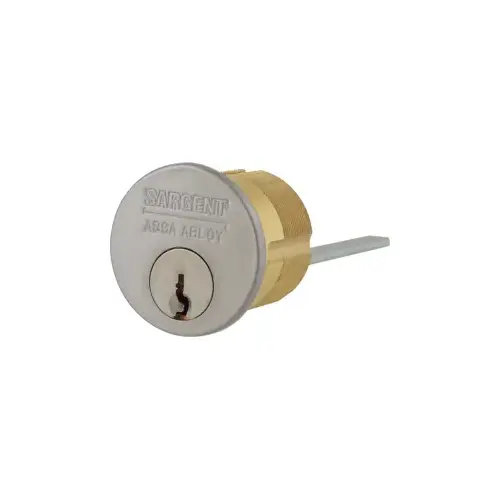

Sargent 34 LA 32D 34 Series Rim Type Cylinder, Satin Stainless Steel

Item #: 34 LA 32D by Sargent

See reviewsSee reviews
See reviews summary
In Stock

$106.66

/each
SAVE UP TO 10.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 737 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Color

Satin Stainless Steel

Color Code

630/US32D

Keyway

Sargent LA

Keying

Keyed Different

Cylinder Type

Conventional Rim

Origin

USA

BAA Qualified

Yes

Package Height

1.875"

Package Length

4.125"

Package Volume

18.36914063

Package Width

2.375"

Key(s)

Cut

Package Qty

1

Base Material

Stainless Steel

Finish

Satin Stainless Steel

Finish Description

Satin Stainless Steel

Keyblank Grouping

SRGT-LA-6-1

Product Type

Cylinder/IC Core

Keying Charges

CCAM

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Function

Rim Cylinder

Door Thickness

2-3/8" to 3-1/4"

Product Length

3-9/16 Inches

ADA Compliant

No

Finish Family

Stainless Steel

Keying Type

Keyed Different

Product Material

Solid Brass

Standards

BHMA A156.5

Cylinder Head Thickness

1/8 Inch

Cylinder Face Diameter

1-11/32 Inches

Cylinder Tailpiece Length

2-3/8 Inch

Cylinder Tailpiece Orientation

Horizontal

Features

Furnished Standard with No. 97 Rosette and Compression Spring; Cap: Brass, bronze or stainless steel

Grade

ANSI/BHMA Grade 1

For Use With

KP8877 Keypad Operated Products; 8877 Profile Series Access Control Products; 20, 30, 80 and 90 Series Exit Devices

Series

Rim Cylinders

Manufacturer Parent

Assa Abloy

Sub-Series

CB_Rim_Cylinders_sargent_15

Alternate Part Number-1

117490

Cam/Tailpiece

Horizontal Tail

Height

1.770000000

Length

4.130000000

Width

2.360000000

Product Overview
34 SeriesRim Cylinders

Providing the required minimum level of control in a full range of keyways, Conventional Cylinders offer limited control for both cylinder and key. Geographically restricted key sections are available for added security and control.

Benefits: Flexible:
  • Available in all Sargent cylinder formats
Enhanced Security:
  • Features a factory-master keying system design
Customizable:
  • offered in a wide variety of finishes
Convenient:
  • Available in mortise; rim; key-in knob and lever; and, large and small format removable core cylinders
Specifications:
  • 27/32" (21mm) screw pattern for through-bolted SARGENT exit devices
  • Cylinder: Solid brass
  • Cap: Brass, bronze or stainless steel
  • Furnished standard with No. 97 rosette and compression spring, "break-off" screws and back plate
  • 6 pin standard, for 7 pin specify "7 pin"
  • Horizontal tail piece only
  • Cylinder finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D, BSP
  • Plug finishes: 4, 15
No. of Pins - 6: Door Thickness when used with outside trim:
  • 2-3/8" to 3-1/4" (60mm to 82mm)
Dim. A (Min.):
  • 1-1/16" (27mm)
No. of Pins - 7: Door Thickness when used with outside trim:
  • 2-1/2" to 3-1/2" (64mm to 89mm)
Dim. A (Min.):
  • 1-7/32" (31mm)
