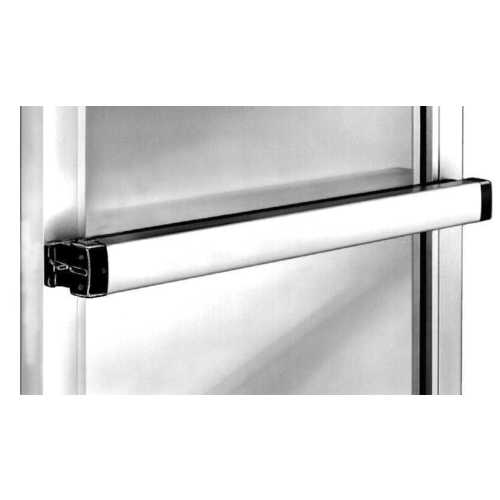

Adams Rite 8801-36 8800 Narrow Stile Rim Exit Device, Satin Aluminum Clear
Item #: 8801-36 by Adams Rite
In Stock $425.34 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Narrow Stile Life-Safety Rim Exit Device
- Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Patented "Starwheel" Bolt Interlocks to Doorframe
- Handing: Device is non-handed. Lever Entry Trim is field reversible.
- Strong, Durable Construction for High Level of Security
- Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Easy To Install
- Bar Height: Standard model adjusts from 30” to 44”.
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
- Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
- Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
- Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
- Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
- Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
- Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
- 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
- Warranty: Five year limited.
Finish
Satin Aluminum Clear
Function
Exit Only
Strike
Standard and Narrow Strikes
Hand
Non-Handed
Color
Clear Anodized
Color Code
628/US28
Door Thickness
1-3/4"-2-1/4"
Device Length
36 Inch (3 Foot)
Fire Rated
No
Device Type
Rim Device
Includes Trim
No
Mechanical Function
Universal
Minimum Stile Size
2 In.
Package Qty
1
Physical Appearance
Narrow Stile Pushpad
Handing
Non-Handed
Warranty
5 Years
Pack Size
1
Bar Type
Push Bar
Builders Hardware Product Type
Exit Devices
Exit Devices Type
Alarmed Exit Device
Length
3' Device
UNSPSC
31162800
Grade
Grade 1
Door Width
36"
Options
Self Tapping Screws
Door Type
Aluminum
exit device type
Narrow Stile, Rim Exit Device
Dogging
Hex Key
Alternate Part Number-1
123037
Sub-Series
8801-36
Manufacturer Parent
Assa Abloy
Application
Single Doors or Pairs of Doors with a Mullion
Features
No Monitor; Exit Device with Starwheel Interlocking Solution
For Door Width
3 Foot
Function Family
Exit Only Device
Device Rating
Life Safety
Device Bar Projection
Fully Projected: 2-5/8 Inch; When Dogged: 1-5/8 Inch
Cylinder Type Used
Rim
Stile Width
2 Inch
Standards
UL 305 Panic Hardware; ANSI/BHMA A156.3, Grade 1
Finish Family
Aluminum
ADA Compliant
No
Dogging Options
Hex Key Dogging
Product Type
Exit Device
Finish Description
Satin Aluminum
Stile
Narrow Stile
The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.
Certifications:- UL 305 Panic Hardware
- ANSI/BHMA A156.3-2008 Grade 1
- ANSI/BHMA A156.3-2014 Grade 2
- Push bar made of extruded aluminum,
- clad or anodized in a variety of finishes.
- Device is non-handed.
- Push bar Length Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.
- Standard width bars can be field cut to the next smallest opening width.
- Suits 1-3/4" [44.5 mm] standard,
- up to 2-1/4" [57.2 mm].
- Minimum 2" [50.8 mm] stile. Fits narrow,
- medium, and wide stile aluminum doors.
- 2-5/8" [66.7 mm] when fully projected,
- 1-5/8" [41.3 mm] when dogged.
- Standard dogging with hex key or optional cylinder dogging.
- Electric dogging option also available.
- Standard machine screws.
- Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
- Available separately.
- For function 03 (Night latch - key releases latch) select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
- For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.
- Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).
- Individually boxed.
- 10 lbs
- [4.54 kg]
- Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices.
- 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.
- When door closes, the interlocking noseguard and Starwheel bolt close around the strike.
- The deadlocking slide spring over, locking the Starwheel bolt to the strike.
- When push bar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.
- This unique interlock provides solid security and prevents jamb spreading.
- Motorized Latch Retraction
- lectric Latch Retraction (EL)
- Electric Dogging
- Alarm
- Monitoring
- Cylinder Dogging
- Matching End Caps
