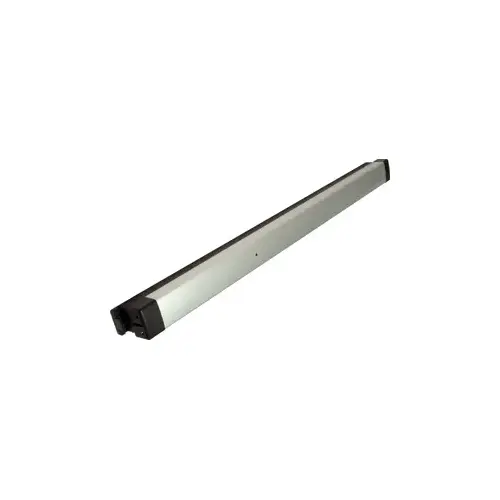

Adams Rite 8801-36 8800 Narrow Stile Rim Exit Device, Satin Aluminum Clear

Item #: 8801-36 by Adams Rite

Brand: Adams Rite

See reviewsSee reviews
See reviews summary
In Stock

$512.17

650.00 /each
SAVE UP TO 51.22
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 314 units available

Finish: Satin Aluminum Clear

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Narrow Stile Life-Safety Rim Exit Device
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Patented "Starwheel" Bolt Interlocks to Doorframe
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Strong, Durable Construction for High Level of Security
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Easy To Install
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Finish

Satin Aluminum Clear

Function

Exit Only

Series

8800 Push Bar

Strike

Standard and Narrow Strikes

Physical Appearance

Narrow Stile Pushpad

Package Qty

1

Minimum Stile Size

2 In.

Mechanical Function

Universal

Includes Trim

No

Device Type

Rim Device

Fire Rated

No

Device Length

36 Inch (3 Foot)

Door Thickness

1-3/4"-2-1/4"

Color Code

628/US28

Color

Clear Anodized

Hand

Non-Handed

Handing

Non-Handed

Warranty

5 Years

Pack Size

1

Bar Type

Push Bar

Builders Hardware Product Type

Exit Devices

Exit Devices Type

Alarmed Exit Device

Stile

Narrow Stile

Finish Description

Satin Aluminum

Product Type

Exit Device

Length

3' Device

UNSPSC

31162800

Grade

Grade 1

Door Width

36"

Options

Self Tapping Screws

Door Type

Aluminum

exit device type

Narrow Stile, Rim Exit Device

Dogging

Hex Key

Alternate Part Number-1

123037

Sub-Series

8801-36

Manufacturer Parent

Assa Abloy

Application

Single Doors or Pairs of Doors with a Mullion

Features

No Monitor; Exit Device with Starwheel Interlocking Solution

For Door Width

3 Foot

Function Family

Exit Only Device

Device Rating

Life Safety

Device Bar Projection

Fully Projected: 2-5/8 Inch; When Dogged: 1-5/8 Inch

Cylinder Type Used

Rim

Stile Width

2 Inch

Standards

UL 305 Panic Hardware; ANSI/BHMA A156.3, Grade 1

Finish Family

Aluminum

ADA Compliant

No

Dogging Options

Hex Key Dogging

Package Height

3.75"

Package Length

53.25"

Package Width

7.5"

Item Weight

10 lbs

Height

4.5

Width

4.88

Dimension

36"

Material

Extruded Aluminum

Manufacturer Warranty

Limited 5 Year Warranty

Includes Cylinder(s)

No

Hazardous Material

No

Finish code

01

No of inners

1

Monitoring Switch

None

Dogging Configuration

Standard Dogging with Hex key or optional cylinder Dogging

Door Strike

Standard Strike and narrow versions for centering doors in 4" jamb (both Strikes included).

Cylinder Dogging

Yes

Cylinder and Keyways

Any Standard 1-5/32" diameter Rim Cylinder such as the 8736 Rim Cylinder, sold separately

Size

36"

Electrical

None

Product Projection

2-5/8"

Fasteners

Machine Screws

Door Thickness Range

1-3/4" To 2-1/4"

Product Size

36"

Substrate Type

Aluminum

Door Handing

Non-Handed

Wood Door Compatible

No

Stile Type

Narrow Stile

Voltage

12V

Product Overview
8800 SeriesNarrow Stile Rim Exit Device

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Certifications:
  • UL 305 Panic Hardware
  • ANSI/BHMA A156.3-2008 Grade 1
  • ANSI/BHMA A156.3-2014 Grade 2
Features: Materials:
  • Push bar made of extruded aluminum,
  • clad or anodized in a variety of finishes.
Handing:
  • Device is non-handed.
Push bar Length:
  • Push bar Length Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.
  • Standard width bars can be field cut to the next smallest opening width.
Door Thickness:
  • Suits 1-3/4" [44.5 mm] standard,
  • up to 2-1/4" [57.2 mm].
Stile Width:
  • Minimum 2" [50.8 mm] stile. Fits narrow,
  • medium, and wide stile aluminum doors.
Projection:
  • 2-5/8" [66.7 mm] when fully projected,
  • 1-5/8" [41.3 mm] when dogged.
Dogging:
  • Standard dogging with hex key or optional cylinder dogging.
  • Electric dogging option also available.
Fasteners:
  • Standard machine screws.
Cylinders:
  • Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
  • Available separately.
Cylinder x Fixed Pull Functions:
  • For function 03 (Night latch - key releases latch) select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
Entry Trim Functions:
  • For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.
Strike:
  • Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).
Standard Package:
  • Individually boxed.
Shipping Weight:
  • 10 lbs
  • [4.54 kg]
Removable Mullion:
  • Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices.
  • 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.
Starwheel Bolt:
  • When door closes, the interlocking noseguard and Starwheel bolt close around the strike.
  • The deadlocking slide spring over, locking the Starwheel bolt to the strike.
  • When push bar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.
  • This unique interlock provides solid security and prevents jamb spreading.
Options: Electrification Options:
  • Motorized Latch Retraction
  • lectric Latch Retraction (EL)
  • Electric Dogging
  • Alarm
  • Monitoring
  • Cylinder Dogging
  • Matching End Caps
