Features
- Constructed from 6063-T6 aluminum alloy and sponge EPDM with a clear anodized aluminum finish for long-term use.
- Measures 36" in length, 1-27/32" in width, and 19/32" in height, suitable for standard door applications.
- Designed for use with wood or hollow metal doors, providing a seal against drafts, dust, moisture, insects, fumes, light, and sound.
- Features an automatic door bottom mechanism that engages when the door is closed to provide a seal.
- Meets industry standards including ASTM E-283-04, ASTM E90, ANSI/BHMA A156.22, UL 1784, NFPA 105-2013, and fire ratings UL10B and UL10C.
- Classified as a BHMA Grade 1 product, suitable for various door accessory and sealing requirements.
- Includes sheet metal screws for surface or semi-mortised mounting and features a replaceable E7 sponge EPDM insert.
Finish
Clear Anodized Aluminum
Series
Door Bottoms
Length
36"
Width
1-27/32"
Size
19/32" X 1-27/32"
Insert
EPDM
Insert Color
Black
Manufacturer Parent
Assa Abloy
Finish Description
Clear Anodized Aluminum
For Use With
Wood or Hollow Metal Doors
Product Width
19/32 Inch
Function
Automatic Door Bottom
Sub-Series
4131CRL-36
ADA Compliant
No
Product Height
1-27/32 Inch
Standards
Air Infiltration Tested ASTM E-283-04; Sound Tested ASTM E90; BHMA Certified ANSI/BHMA A156.22; Smoke Tested UL 1784; NFPA 105-2013; Fire Rated UL10B, UL10C Positive Pressure
Insert Replacement Part Number
E7
Product Type
Door Accessory
Features
Seals to Keep Out Draft, Dust, Moisture, Insects, Fumes, Light, Sound
Product Material
6063-T6 Aluminum Alloy
Product Length
36 Inch
Warranty
5 Year
Insert Type
Sponge EPDM Insert
Finish Family
Aluminum
Projection
19/32"
Material
Anodized Aluminum and Sponge EPDM
FLANGE LENGTH
36"
Manufacturer Warranty
Limited 5 Year Warranty
Hazardous Material
No
Flange Thickness
19/32"
Finish code
C
Flange width
1-27/32"
Flange Material
Anodized Aluminum
Insert Material
Sponge EPDM
No of inners
1
Product Dimension
L: 36", W: 19/32", H: 1-27/32"
Substrate Type
Aluminum
ANSI/BHMA Standards
Air Infiltration Tested ASTM E-283-04, Sound Tested ASTM E90, BHMA Certified ANSI/BHMA A156.22, Smoke Tested UL 1784, NFPA 105-2013, Fire Rated UL10B, UL10C Positive Pressure
Application
Wood or Hollow Metal Doors
Product Overview

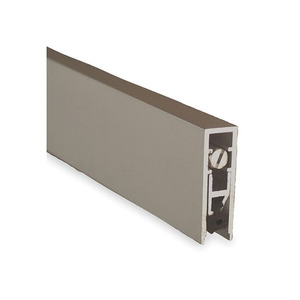

The 36" Surface Mounted Automatic Door Bottom is designed for use with wood or hollow metal doors to seal against drafts, dust, moisture, insects, fumes, light, and sound. Constructed from 6063-T6 aluminum alloy and sponge EPDM, this door accessory features a 36" length, 1-27/32" width, and 19/32" height. It is suitable for surface or semi-mortised mounting applications. The unit includes a black sponge EPDM insert for effective sealing. It meets various industry standards, including air infiltration testing per ASTM E-283-04, sound testing per ASTM E90, and is BHMA certified per ANSI/BHMA A156.22. Additionally, it is smoke tested per UL 1784 and NFPA 105-2013, and fire-rated per UL10B and UL10C positive pressure. The product comes with sheet metal screws for installation. The clear anodized aluminum finish provides a clean aesthetic.
