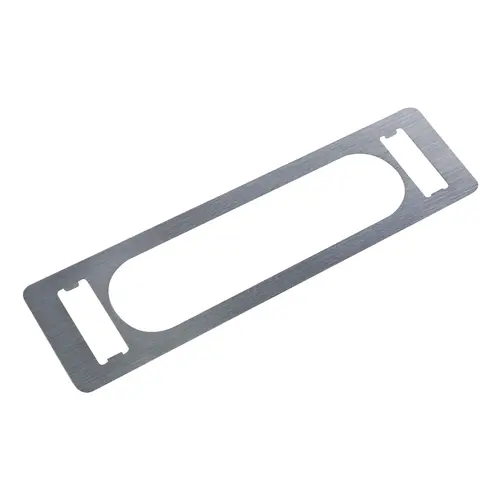

Von Duprin 33A-WDA US26D WDA Cover Plate Kit, Satin Chrome
Item #: 33A-WDA US26D by Von Duprin
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Built to Last with Heavy Duty Materials
- Most Von Duprin Parts Are Made For a Specific Finish
- Non Handed
- Most Von Duprin Parts Are Made For a Specific Series
- Limited 3 Year Warranty
Finish
Satin Chrome
Grade
Grade 1
Color Code
626/US26D
Fire Rated
No
Package Volume
0
Package Qty
1
Base Material
Brass or Bronze
Finish Description
Satin Chrome
Product Type
Exit Device Part/Accessory
For Use With
360 Controls; 33A/35A; 55; 88; 98/99 Series Device
Function
Cover Plate
Product Height
10 Inch
Product Width
1-5/8 Inch
ADA Compliant
No
Finish Family
Satin Chrome
Function Family
Part/Component
Features
Cover Up Door Preparations for Control; Prevents the Control From Boring Into the Wood Door
Door Material
Wood Door
Manufacturer Parent
Allegion
Sub-Series
PA_Exit_Device_Parts_von_duprin_44
33A for all types of single and double doors with mullion, UL listed for panic exit hardware.Devices are ANSI A156.3 – 2014 Grade 1. The 33A has a grooved case. The rim device is non-handed except when the SS (signal switch) option is used. 33A fits door stiles as narrow as 1 3/4” (44mm). Newly designed device has a one piece centercase cover.
Finishes – US3, US4, US10, US26, US26D, US26D-AM, US28, 313 and 315.
Specifications:- Device lengths:
- 3'2' 4" to 3' (711mm to 914 mm) Door size
- 4'2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor:
- 39 13/16" (1011 mm)
- 39 11/16" (1008 mm) with Mullion
- Center case dimensions:8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism case dimensions:2 1/4" x 2 1/4" (57mm x 57mm)
- Projection:
- Pushbar neutral – 3 13/16" (97 mm)
- Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt:Deadlocking, 3/4" (19mm) throw
- Fasteners and sex bolts (SNB):
- Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
- #425 SNB furnished standard for end case
- #325 SNB furnished standard for EO (exit only device).
ALK: Alarm Kit
- Unauthorized opening triggers 85-decibel horn
- Set in armed or disarmed mode by key
CX: Chexit delayed exit
- Meets NFPA 101 requirements
- Self-contained controls, locking, alarm
EL: Electric latch retraction
- Enables remote unlatching
- Alternative to manual dogging
HD-EL: Electric latch retraction with hex dogging
QEL: Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
RX: Pushpad monitor switch
- Request to exit, WP-RX waterproof option
- Signals use of an opening
- SPDT switch to monitor pushpad
LX: Latchbolt monitoring
LX-RX: Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
SS: Signal Switch
CON: AllegionConnectors
- Common connectors to connect various door hardware all the way to the power supply
AX: Accessible device
- UL certified to meet new 5 lb. maximum operating force requirement
- Exceeds ANSI/BHMA requirements
GBK: Glass bead kit
PN: Pneumatic latch retraction
- For areas where electrical devices banned
- Special linkage for mechanical or pneumatic dogging
SG: Safety glow
SEC: Security screws
SNB: Sex bolts
Dogging/Strikes- Hex key dogging standard.
CD: Cylinder dogging
- Replaces hex key dogging
- Requires standard 1 1/4" mortise cylinder
LD: Less dogging
Strike 1439:Dull black
Optional Strikes
