30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
- Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
- Closer mounts hinge side, specify right or left swinging door.
- Corner brackets available. See Options tab for options.
- 4011 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- Optional plated finish on metal cover, arm and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with powder coat only.
- The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
Hand
RH
Color
Aluminum Painted
Color Code
689/US28
Mounting Style
Regular or Top Jamb
Hold Open
With Hold Open
BAA Qualified
Yes
Package Volume
0
Package Qty
1
Base Material
VARIES
Handing
Right Hand
Manufacturer Parent
Allegion
Finish Description
Aluminum Painted
For Use With
4010 Series
Function
Hold Open Arm
Sub-Series
PA_Door_Control_Parts_lcn_31
ADA Compliant
No
Arm Form
Hold Open
Function Family
Part/Component
Product Type
Door Control Part/Accessory
Features
Provides Hold Open Function Adjustable At Elbow
Series
Parts/Accessories
Finish Family
Aluminum
Alternate Part Number-1
189426
Finish
Aluminum
Hazardous Material
No
UL Listing Type
UL 10C Rated
No of inners
1
Finish code
689 (AL)
Material
Cast Iron
Manufacturer Warranty
Limited 30 Year Warranty
Parts and Accessories Type
Replacement Parts
Product Overview

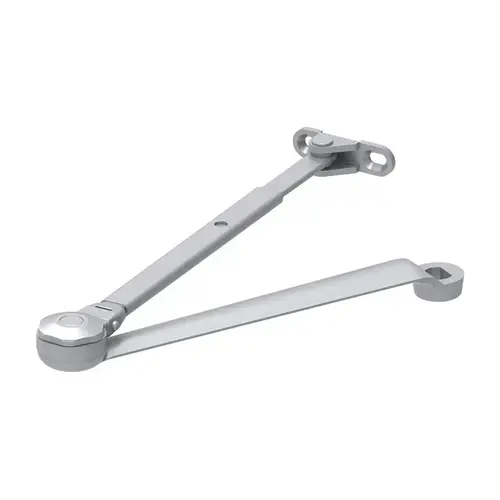

Hold Open Arm, Right Hand, Aluminum
The 4010 is tge best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.
