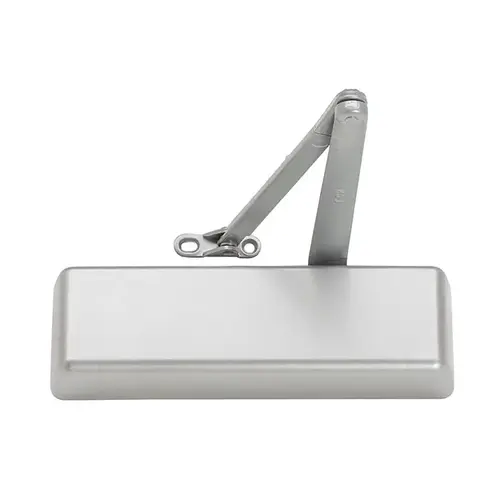

LCN 4011-REG LH AL Left Hand Size 1 Surface Mounted Pull Side Smoothee Heavy Duty Door Closer with TBSRT Thru Bolts 689 Aluminum Finish
Item #: 4011-REG LH AL by LCN
UPC #: 043156871070
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
- Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
- Closer mounts hinge side, specify right or left swinging door.
- Corner brackets available. See Options tab for options.
- 4011 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- Optional plated finish on metal cover, arm and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with powder coat only.
- The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
Grade
Grade 1
Cover
Full Plastic
Type
Surface
Hand
LH
Color
Aluminum Painted
Color Code
689/US28
Mounting Style
Regular
Hold Open
With Hold Open
Closer Size
Adj. 1 to 5
BAA Qualified
Yes
Package Volume
0
Cold Weather Fluid
Yes
Degree Hold Open
140 Deg.
Degree Swing
140 Deg.
Mounting Location
Pull Side
Package Qty
1
Base Material
VARIES
Handing
Left Hand
Closer Pinion Diameter
11/16 Inch
Manufacturer Parent
Allegion
Closer Application
Surface
Closer Piston Diameter
1-1/2 Inch
Closer Arm Type
Regular Arm
Mounting Hole Size
2-1/2" x 6"
Finish Description
Aluminum Painted
Product Width
2-1/4 Inch
Closer Arm Construction
Forged
Function
REG-Regular Arm
Maximum Door Opening
140°
Sub-Series
DC_Surface Mounted Closers_lcn_54
ADA Compliant
YES
Spring Size
1-5
Mounting Type
Hinge (Pull Side)
Product Height
3-1/2 Inch
Application
High Traffic Applications
Closer Arm Extension
11-1/2 Inch
Closer Cover
Full Plastic Cover
Function Family
Non Hold Open Door Closer
Mount
Hinge (Pull Side)
Standards
Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act
Closer Construction
Cast Iron
Door Size
4' 6" (Interior); 3' 6" (Exterior)
Templating
Peel-n-Stick
Door Thickness
1-3/4 inch
Closer Fluid
All Weather Fluid
Closer Interior Door Size
up to 4'6"
Closer Fluid Temperature Range
-30°F to 120°F
Product Type
Door Closer/Holder/Stop
Features
Full Complement Bearing; Double Heat-Treated Steel Pinion Journal
Product Material
Cast Iron
Fastener Type
Self Reaming and Tapping Screws
Product Length
12-1/4 Inch
Closer Arm Configuration
Regular Arm
Closer Hold-Open
false
Warranty
30 year
Series
4010 Series
Included Components
Patented Green Dial Spring Force Indicator
Closer Exterior Door Size
up to 3'6"
Finish Family
Aluminum
Finish
Aluminum
Dimension
12-1/4" x 3-1/2" x 2-1/4"
Closer Type
Surface Mounted Closer
Hazardous Material
No
UL Listing Type
UL 10C Rated
No of inners
1
Finish code
689 (AL)
Mounting Hole Pattern
2-1/2" x 6" Rectangular Mounting
Material
Cast Iron
Manufacturer Warranty
Limited 30 Year Warranty
Product Overview
Regular Arm Door Closer, Left Hand, Aluminum
The 4010 is LCN's best performing heavy duty surface door closer designed for institutional and other high traffic applications.
The 4010 is tge best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.
