Features
- Standard 4020 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See the Options tab for options.
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
- Non-sized cylinder (4021) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
- Closer mounts top jamb (push side), specify right or left swinging door.
- 4021 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- Optional plated finish on metal cover, arm and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with powder coat only.
- The 4020 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
Grade
Grade 1
Cover
Full Plastic
Type
Surface
Hand
RH
Color
Sprayed Dark Bronze
Color Code
695
Mounting Style
Top Jamb
Hold Open
With Hold Open
Closer Size
Adj. 1 to 5
BAA Qualified
Yes
Package Volume
0
Cold Weather Fluid
Yes
Degree Hold Open
140 Deg.
Degree Swing
140 Deg.
Mounting Location
Push Side
Package Qty
1
Base Material
VARIES
Handing
Right Hand
Pack Size
1
Manufacturer Warranty
30 Year Limited Warranty
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Commercial/Residential
Commercial
General Color Family
Browns / Tans
General Material
Other
Hardware Finish Family
Bronze
Maximum Door Range (deg.)
110
Product Depth (in.)
4.5
Product Height (in.)
16
Product Width (in.)
4.5
Mounting
Top Mount
Warranty
30 Year Limited Warranty
UNSPSC
30171514
Product Type
4020 Series

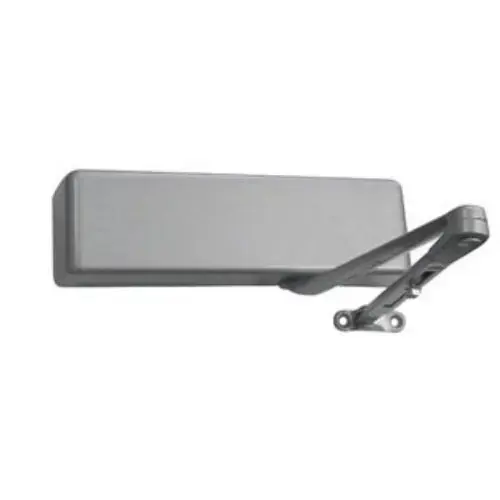

Product Overview
The 4020 Series is a heavy-duty closer that meet demands for high-traffic installations and is designed specifically for unique mounting applications. It is UL and cUL listed, meets ANSI/BHMA Grade 1 standards and boasts 30-year warranties. It features a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. It also features the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
- Hold open arm
- Size 1-5
- Push side mount
- Right hand
- 140° swing
- Full body cover
- 30-year limited warranty
- ANSI A156.4, grade 1, UL 10C, ADA
- Self-reaming tapping screws
