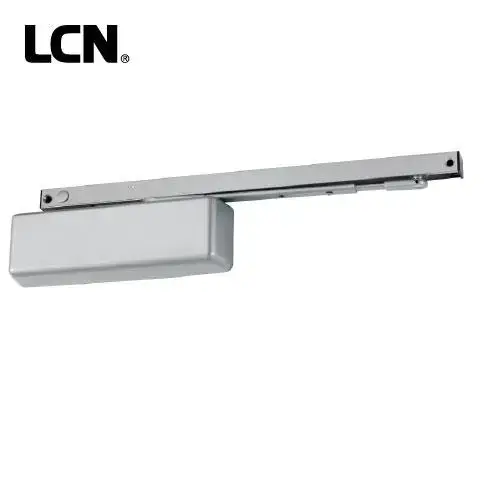

LCN 4040SE-STD 24V DKBRZ 4040SE Series Surface Mounted Door Closer, Dark Bronze Painted
Item #: 4040SE-STD 24V DKBRZ by LCN
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
- Non-sized cylinders for interior doors to 4'0".
- Hold-open force is adjustable.
- Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
- Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
- Closer mounts on either push or pull side of the door.
- Non-handed for mounting on either right or left hand door.
- Concealed or surface wiring.
- Interfaces with alarm systems. Consult factory for full details.
- Standard or optional custom powder coated finishes on cover and arm.
- Optional plated finishes
Package Volume
0
Color
Dark Bronze Painted
Hand
Non-Handed
Grade
ANSI/BHMA Grade 1
Cover
Full Plastic
Degree Swing
110 Deg.
Type
Surface
Package Qty
1
Hold Open
With Hold Open
Mounting Location
Push or Pull Side
Color Code
695
Degree Hold Open
110 Deg.
BAA Qualified
Yes
Mounting Style
Slide Track
Base Material
VARIES
Cold Weather Fluid
Yes
Closer Size
1-4
Finish
Dark Bronze Painted
Finish Description
Dark Bronze Painted
Function
STD-Standard Arm
Spring Size
1-4
Mount
Push or Pull Side
Voltage
24V
Product Type
Door Closer/Holder/Stop
Series
4040SE Series
Mounting Type
Push or Pull Side
Application
Fire and Smoke Barrier Doors
Handing
Non-Handed
Warranty
2 yr
Product Length
578mm
Product Width
57mm
ADA Compliant
YES
Finish Family
Dark Bronze
Product Material
Cast Iron
Closer Cover
Plastic Cover
Standards
Grade 1 - ANSI A156.15, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101
Closer Arm Type
Single Lever Track Arm
Closer Fluid
All Weather Fluid
Closer Piston Diameter
1-1/2 Inch
Closer Pinion Diameter
3/4 Inch
Fastener Type
Wood and Machine Screw
Features
Full Complement Bearings; Concealed or Surface, Interfaces with Fire Alarm Systems
Door Size
4" (Interior); 3" (Exterior)
Maximum Door Opening
180°
Manufacturer Parent
Allegion
Closer Hold-Open
false
Maximum Reveal
3mm
Sub-Series
DC_Surface Mounted Closers_lcn_1
Door Thickness
1-3/4 inch
Product Overview
4040SE SeriesHeavy Duty Closer/Holder
The 4040SE SENTRONIC® is a heavy duty, non-handed, nonsized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.
Specifications: Certifications:- Grade 1 - ANSI A156.15, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101
- Cast Iron Body
- Full Complement Bearing
- 1-1/2" Diameter Piston
- 3/4" Diameter Double Heat Treated Pinion Journal
- All Weather Fluid
- Non-Handed
- Adjustable Spring Size, up to 4
- 2 years
- Clip-on plastic, standard
- Metal, optional
- Wood and machine screw pack
- Hinge (Pull Side), Stop Face (Push Side)
- Standard arm and SE track, standard Double egress arm and SEL track, optional
- Aluminum (689)
- Statuary Bronze (690)
- Light Bronze (691)
- Black (693)
- Dark Bronze (695)
- Brass (696)
- Custom colors optional/li>
- Optional SRI primer - powder coat only
- Optional plated finishes
- Concealed or surface, interfaces with fire alarm systems
