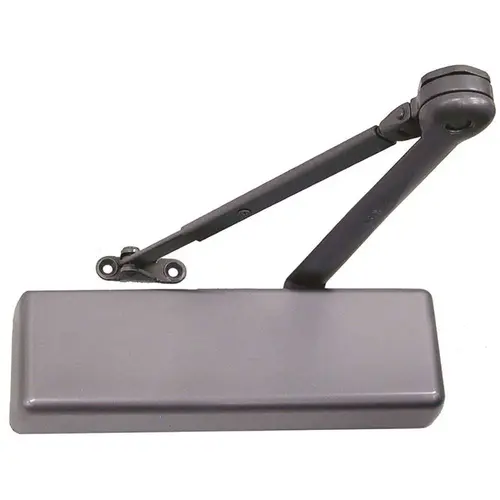

LCN 4040XP-H AL DEL 4040XP Series Size 1 to 6 Sprayed Aluminum Grade 1 Surface Door Closer, Hold Open Arm, (DEL) Delayed Action
Item #: 4040XP-H AL DEL by LCN
UPC #: 840067659236
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 44% increased bearing load capacity
- Strongest pinion ever- at 3/4” journal diameter
- Widest bearing ever- at 5/8”
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Grade
Grade 1
Application
Hold Open Arm
Cover
Plastic
Type
Surface
Hand
Non-Handed
Color
Sprayed Aluminum
Color Code
689/US28
Case Length
16.5"
Screw Type
Self Tapping
Mounting Style
Regular
Hold Open
With Hold Open
Arm Type
Regular Hold Open Arm
Fire Rated
No
Origin
USA
Closer Size
Non-Sized
BAA Qualified
Yes
Package Height
4.5"
Package Length
16"
Package Volume
306
Package Width
4.25"
Back Check
Adjustable
Case Height
9.25"
Case Volume
1488.09375
Case Width
9.75"
Degree Hold Open
Adjustable
Degree Swing
120¼
Delay
Yes
Hold Open Type
Friction
Mounting Location
Push or Pull Side
Package Qty
1
Product Height
3.75"
Product Length
12"
Product Width
2.25"
Restrictions
None
Special Rust Inhibitor
No
Through Bolts
No
Base Material
VARIES
Pack Size
1
Manufacturer Warranty
30 Year Warranty
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Commercial/Residential
Commercial
General Color Family
Metallics
General Material
Steel
Hardware Finish Family
Metal
Maximum Door Range (deg.)
110
Product Depth (in.)
4.5
Product Height (in.)
16
Product Width (in.)
4.25
Mounting
Top Mount
Warranty
30 Year Warranty
UNSPSC
30171514
Product Overview
The 4040XP Series is LCN's most durable surface-mounted heavy-duty closer, designed for the most demanding high-use-and-abuse applications. It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations. LCN peel-n-stick templates assure quick and accurate installation and the patented LCN Green Dial takes the guesswork out of spring force adjustments.
- Hold open arm
- Size 1 to 6
- Tri mount
- Non-handed
- 120° swing
- Full body cover
- 30-year warranty
- ANSI A156.4, grade 1, UL 10C, ADA
- Self-reaming tapping screws
