4040XP Series Size 1 to 6 Sprayed Aluminum Grade 1 Surface Door Closer, Hold Open Arm, Non-Handed

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

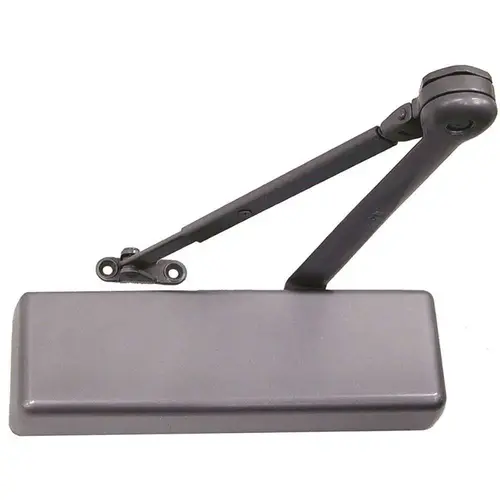

LCN 4040XP-H AL 4040XP Series Size 1 to 6 Sprayed Aluminum Grade 1 Surface Door Closer, Hold Open Arm, Non-Handed

Item #: 4040XP-H AL by LCN

UPC #: 840067659212

See reviewsSee reviews
See reviews summary
In Stock

$647.56

/each
SAVE UP TO 64.76
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 854 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 44% increased bearing load capacity
  • Strongest pinion ever- at 3/4” journal diameter
  • Widest bearing ever- at 5/8”
  • Stronger pinion teeth
  • New V-shield™ seal with 20% longer life
  • XP = eXtra Protection in real world applications
  • Cast Iron
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • LCN® Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed
  • Tested and certified under ANSI Standard A156.4, grade one
  • Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • UL and cUL listed for self-closing doors without hold-open
  • 4040XP can be used with all 4040 accessories

Grade

ANSI/BHMA Grade 1

Application

Most Demanding High-Use-And-Abuse Applications

Cover

Plastic

Type

Surface

Hand

Non-Handed

Color

Sprayed Aluminum

Color Code

689/US28

Case Length

16.5"

Screw Type

Self Tapping

Mounting Style

Regular

Hold Open

With Hold Open

Arm Type

Regular Hold Open Arm

Fire Rated

No

Origin

USA

Closer Size

Non-Sized

BAA Qualified

Yes

Package Height

4.5"

Package Length

16"

Package Volume

306

Package Width

4.25"

Back Check

Adjustable

Case Height

9.25"

Case Volume

1488.09375

Case Width

9.75"

Degree Hold Open

Adjustable

Degree Swing

120¼

Delay

No

Hold Open Type

Friction

Mounting Location

Push or Pull Side

Package Qty

1

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

Restrictions

None

Special Rust Inhibitor

No

Through Bolts

No

Base Material

VARIES

Spring Size

1-6

Function

H-Hold Open Arm

Mount

Hinge (Pull Side)

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

Series

4040XP Series

Finish

Aluminum Painted

Pack Size

1

Manufacturer Warranty

30 Year Warranty

Builders Hardware Product Type

Door Closer

Certifications and Listings

ANSI Certified

Commercial/Residential

Commercial

General Color Family

Metallics

General Material

Steel

Hardware Finish Family

Metal

Maximum Door Range (deg.)

110

Product Depth (in.)

4.5

Product Height (in.)

16

Product Width (in.)

4.25

Mounting

Top Mount

Warranty

30 year

UNSPSC

30171514

Closer Pinion Diameter

3/4 Inch

Manufacturer Parent

Allegion

Handing

Non-Handed

Closer Piston Diameter

1-1/2 Inch

Closer Arm Type

Hold Open Arm

Mounting Hole Size

2-1/4" x 5"

Closer Arm Construction

Forged Steel

Maximum Door Opening

120° (Hinge Pull, Top Jamp Push); 180° (Parallel Arm)

Sub-Series

DC_Surface Mounted Closers_lcn_5

ADA Compliant

YES

Mounting Type

Hinge (Pull Side)

Closer Clearance

2-3/8" (Hinge Pull)

Closer Arm Extension

11" (Hinge Pull, Top Jamb Push)

Closer Cover

Plastic Cover

Function Family

Hold Open Door Closer

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Door Size

5' (Interior); 4' (Exterior)

Templating

Peel-n-Stick

Door Thickness

1-3/4 inch

Closer Fluid

All Weather Liquid X Fluid

Closer Fluid Temperature Range

-30°F to 120°F

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Product Material

Cast Iron

Fastener Type

Self Reaming and Tapping Screws

Closer Hold-Open

true

Included Components

Patented Green Dial Spring Force Indicator

Finish Family

Aluminum

MADE IN THE USA

Yes

Security Grade

ANSI Grade 1

Package Quantity

1

UL Listed

No

Door Handing

Universal/Reversible

Hardware Included

True

Hex Key Dogging

False

AbilityOne

No

Lever/Pull Included

False

Hinge Type

Hold Open Door

Interior/Exterior

Interior

Material

Aluminum

Adjustable

True

GSA Approved

No

Mount Type

Parallel Arm

TAA/BAA Compliant

Yes

Product Overview
4040XP SeriesFlexible Heavy Duty Closer

The 4040XP is LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearings
  • 1-1/2" Diameter Piston
  • 3/4" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Liquid X Fluid
Handing:
  • Non-handed
Templating:
  • Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern
Size:
  • Adjustable Spring Size 1-6. Included Patented Green Dial
Warranty:
  • 30 Years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Arms:
  • Regular Arm
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
