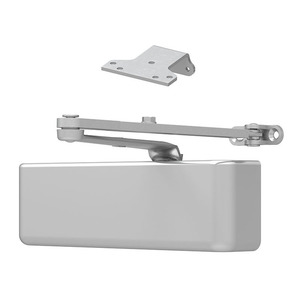

4040XP Series Surface Mounted Door Closer, Aluminum Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LCN 4040XP-Rw/PA AL 4040XP Series Surface Mounted Door Closer, Aluminum Painted

Item #: 4040XP-Rw/PA AL by LCN

UPC #: 043156871025

See reviews See reviews

In Stock $521.24 /each

SAVE UP TO 52.12

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • 44% increased bearing load capacity
  • Strongest pinion ever- at 3/4” journal diameter
  • Widest bearing ever- at 5/8”
  • Stronger pinion teeth
  • New V-shield™ seal with 20% longer life
  • XP = eXtra Protection in real world applications
  • Cast Iron
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • LCN® Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed
  • Tested and certified under ANSI Standard A156.4, grade one
  • Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • UL and cUL listed for self-closing doors without hold-open
  • 4040XP can be used with all 4040 accessories

Grade

ANSI/BHMA Grade 1

Application

Most Demanding High-Use-And-Abuse Applications

Cover

Plastic

Type

Surface

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Case Length

16.5"

Screw Type

Self Tapping

Mounting Style

Tri Mount

Hold Open

Without Hold Open

Arm Type

Regular Arm

Fire Rated

3 Hours {A}

Origin

USA

Closer Size

1-6

BAA Qualified

Yes

Package Height

4.5"

Package Length

16"

Package Volume

306

Package Width

4.25"

Back Check

Adjustable

Case Height

9.25"

Case Volume

1488.09375

Case Width

9.75"

Degree Swing

120¼

Delay

No

Mounting Location

Push or Pull Side

Package Qty

1

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

Restrictions

None

Special Marks

Fire rated 3 Hours {A}

Special Rust Inhibitor

No

Through Bolts

No

Base Material

VARIES

Spring Size

Adjustable 1-6

Function

RW/PA-Regular Arm w/PA Shoe

Mount

Tri-Pack (Pull Side Top Jamb Parallel)

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

Finish

Aluminum Painted

Closer Pinion Diameter

3/4 Inch

Manufacturer Parent

Allegion

Closer Application

Surface

Handing

Non-Handed

Closer Piston Diameter

1-1/2 Inch

Closer Arm Type

Regular Arm with Parallel Arm Bracket

Mounting Hole Size

2-1/4" x 5"

Closer Arm Family

Regular Non-Hold Open

Closer Arm Construction

Forged Steel

Maximum Door Opening

120° (Hinge Pull, Top Jamp Push); 180° (Parallel Arm)

Sub-Series

DC_Surface Mounted Closers_lcn_10

ADA Compliant

YES

Mounting Type

Tri-Pack (Pull Side Top Jamb Parallel)

Closer Clearance

2-3/8" (Hinge Pull); 4" (Parallel Arm)

Closer Arm Extension

11" (Hinge Pull, Top Jamb Push)

Closer Cover

Plastic Cover

Function Family

Non Hold Open Door Closer

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Construction

Cast Iron

Door Size

5' (Interior); 4' (Exterior)

Templating

Peel-n-Stick

Door Thickness

1-3/4 inch

Closer Fluid

All Weather Liquid X Fluid

Closer Interior Door Size

up to 6'

Closer Fluid Temperature Range

-30°F to 120°F

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Product Material

Cast Iron

Closer Arm Configuration

Regular Arm w/Parallel Arm Shoe

Closer Hold-Open

false

Warranty

30 year

Included Components

Patented Green Dial Spring Force Indicator

Closer Exterior Door Size

up to 5'

Finish Family

Aluminum

Options

All Weather Fluid, Machine Screws, Thru-Bolts, Wood Screws

Alternate Part Number-1

111534

Closer Type

Mechanical

Maximum Opening

120°

Mounting

Hinge Side, Parallel Arm, Top Jamb

Body Type

Cast Iron

Arm Function

Regular Arm w/Parallel Arm Shoe

4040XP SeriesFlexible Heavy Duty Closer

The 4040XP is LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearings
  • 1-1/2" Diameter Piston
  • 3/4" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Liquid X Fluid
Handing:
  • Non-handed
Templating:
  • Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern
Size:
  • Adjustable Spring Size 1-6. Included Patented Green Dial
Warranty:
  • 30 Years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Arms:
  • Regular Arm
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
