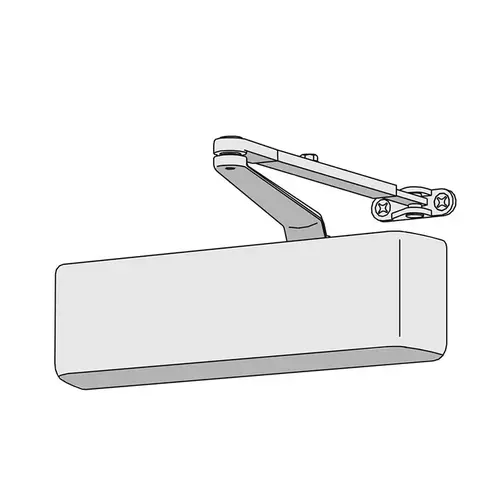

LCN 4040XP-SCUSH AL ST1595 Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Spring Cush Door Closer with TBSRT Thru Bolts with Special Template 689 Aluminum Finish

Item #: 4040XP-SCUSH AL ST1595 by LCN

See reviewsSee reviews
See reviews summary
In Stock

$784.76

/each
SAVE UP TO 78.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 44% increased bearing load capacity
  • Strongest pinion ever- at 3/4” journal diameter
  • Widest bearing ever- at 5/8”
  • Stronger pinion teeth
  • New V-shield™ seal with 20% longer life
  • XP = eXtra Protection in real world applications
  • Cast Iron
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • LCN® Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed
  • Tested and certified under ANSI Standard A156.4, grade one
  • Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • UL and cUL listed for self-closing doors without hold-open
  • 4040XP can be used with all 4040 accessories

Grade

Grade 1

Application

Spring Cush Arm

Cover

Plastic

Type

Surface

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Case Length

16.5"

Screw Type

Self Tapping

Mounting Style

Parallel Arm

Hold Open

Without Hold Open

Arm Type

Parallel Arm Spring Stop

Fire Rated

3 Hours {A}

Origin

USA

Closer Size

Non-Sized

BAA Qualified

Yes

Package Height

4.5"

Package Length

16"

Package Volume

306

Package Width

4.25"

Back Check

Adjustable

Case Height

9.25"

Case Volume

1488.09375

Case Width

9.75"

Degree Swing

110¼

Delay

No

Mounting Location

Push Side

Package Qty

1

Product Height

3.75"

Product Length

12"

Product Width

2.25"

Restrictions

None

Special Marks

Fire rated 3 Hours {A}

Special Rust Inhibitor

No

Stop

Spring Stop

Through Bolts

No

Special Template

ST1595

Base Material

VARIES

Finish

Aluminum

Dimension

12-1/4" x 2-1/4" x 3-1/2"

Material

Cast Iron

Spring Size

Adjustable 1-6 Size

Manufacturer Warranty

Limited 30 Year Warranty

UL Listing Type

UL 10C Rated

Closer Type

Surface Mounted Closer

Hazardous Material

No

Finish code

689 (AL)

Series

4040XP Series

No of inners

1

Mounting Hole Pattern

1" Diagonal Mounting with 2-1/4" Spacing

Product Overview
Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Spring Cush Door Closer with TBSRT Thru Bolts with Special Template 689 Aluminum Finish
