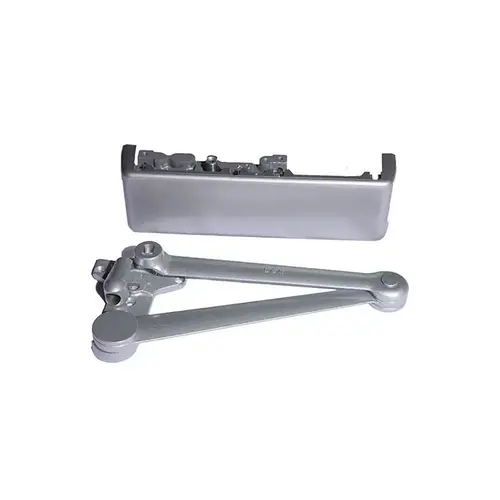

Left Hand Heavy Duty Parallel Arm Spring Cush Push Side Mount Adjustable 1-5 Door Closer with TBSRT Thru Bolts 689 Aluminum Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LCN 4111-SCUSH LH AL Left Hand Heavy Duty Parallel Arm Spring Cush Push Side Mount Adjustable 1-5 Door Closer with TBSRT Thru Bolts 689 Aluminum Finish

Item #: 4111-SCUSH LH AL by LCN

See reviews See reviews

In Stock $659.80 /each

SAVE UP TO 65.98

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
  • Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts parallel arm, specify right or left swinging door
  • 4111 cylinder meets ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • The 4110 Series is UL and cUL listed for self-closing doors without holdopen
  • Tested and certified under ANSI Standard A156.4, grade one

Stop

Spring Stop

Special Marks

Complies with ADA accessibility guidelines

Package Qty

1

Mounting Location

Push Side

Degree Swing

110 Deg.

Cold Weather Fluid

Yes

Package Volume

0

BAA Qualified

Yes

Closer Size

Adj. 1 to 5

Hold Open

Without Hold Open

Mounting Style

Parallel Arm

Color Code

689/US28

Color

Aluminum Painted

Hand

Left Hand

Type

Surface

Cover

Full Plastic

Grade

ANSI/BHMA Grade 1

Handing

LH

Warranty

30 year

Aluminium Bottle Contents

Swinging

ProductType

Automatic

Door Series

4110

Spring Size

1-5

Function

SCUSH-Spring Cush-N-Stop Arm

Door Thickness

1-3/4 inch

Mount

Push Side

Door Size

4' 6" (Interior); 3' 6" (Exterior)

Maximum Door Opening

110°

Finish Description

Aluminum Painted

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

ADA Compliant

YES

Finish Family

Aluminum

Included Components

Patented Green Dial Spring Force Indicator

Closer Arm Construction

Forged Steel

Product Material

Cast Iron

Closer Cover

Plastic Cover

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Arm Extension

11-1/2 Inch

Closer Arm Type

Spring Cush-n-Stop Arm

Closer Clearance

5-1/2 Inch

Closer Fluid Temperature Range

-30°F to 120°F

Closer Fluid

All Weather Fluid

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

11/16 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

2-1/2" x 6"

Templating

Peel-n-Stick

Fastener Type

Self Reaming and Tapping Screws

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Product Type

Door Closer/Holder/Stop

Manufacturer Parent

Allegion

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_lcn_25

Application

High-Traffic Installations and Designed Specifically for Unique Mounting Applications

Mounting Type

Push Side

Finish

Aluminum

Dimension

12-1/4" x 3-1/2" x 2-1/4"

Closer Type

Surface Mounted Closer

Hazardous Material

No

4110 SeriesHeavy Duty Closer

The 4110 is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Handed
Templating:
  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern
Size:
  • Adjustable Spring Size 1-5, or Sized 6, Includes Patented Green Dial
Warranty:
  • 30 years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Parallel Arm (Push Side)
Arms:
  • Extra-Duty arm
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
