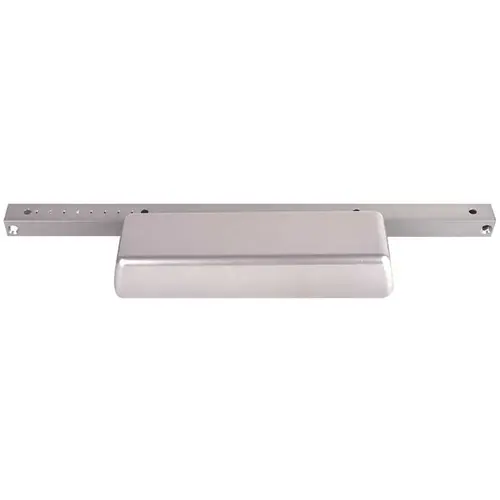

LCN 4114T-STD LH AL 4110T Series Surface Mounted Track Closer Sprayed Aluminum
Item #: 4114T-STD LH AL by LCN
UPC #: 840067661031
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
- Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal
- Fluid: All Weather Fluid
- Handing: Handed
- Size: Adjustable Spring Size 1-5, or Sized 6. Includes Patented Green Dial
- Warranty 30 years
Grade
ANSI/BHMA Grade 1
Cover
Full Plastic
Type
Surface
Hand
Left Hand
Color
Sprayed Aluminum
Color Code
689/US28
Mounting Style
Slide Track
Hold Open
Without Hold Open
BAA Qualified
Yes
Package Volume
0
Degree Swing
110 Deg.
Mounting Location
Push Side
Package Qty
1
Handing
LH
Pack Size
1
Manufacturer Warranty
30 Year Limited Warranty
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Commercial/Residential
Commercial
General Color Family
Metallics
General Material
Steel
Hardware Finish Family
Metal
Maximum Door Range (deg.)
110
Product Depth (in.)
4
Product Height (in.)
23.25
Product Width (in.)
4.25
Mounting
Top Mount
Warranty
30 year
UNSPSC
30171514
Spring Size
4
Function
STD-Standard Arm
Door Thickness
1-3/4 inch
Mount
Push Side
Door Size
4' 6" (Interior); 3' 6" (Exterior)
Maximum Door Opening
110°
Finish Description
Aluminum Painted
Product Height
3-1/2 Inch
Product Length
12-1/4 Inch
Product Width
2-1/4 Inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Patented Green Dial Spring Force Indicator
Closer Arm Construction
Forged Steel
Product Material
Cast Iron
Closer Cover
Plastic Cover
Standards
Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act
Closer Arm Type
Standard Arm
Closer Clearance
2-1/4 Inch
Closer Fluid Temperature Range
-30°F to 120°F
Closer Fluid
All Weather Fluid
Closer Piston Diameter
1-1/2 Inch
Closer Pinion Diameter
11/16 Inch
Function Family
Non Hold Open Arm Door Closer
Fastener Type
Self Reaming and Tapping Screws
Features
Full Complement Bearing; Double Heat-Treated Steel Pinion Journal
Product Type
Door Closer/Holder/Stop
Series
4110T Series
Manufacturer Parent
Allegion
Closer Hold-Open
false
Sub-Series
4114T-STD-AL-LH
Application
Interior High Traffic Applications
Mounting Type
Push Side
Product Overview
4110T SeriesHeavy Duty Track Closer
The 4110T is LCN’s best performing heavy duty track closer designed specifically for interior doors in institutional and other high traffic applications.
Specifications: Certifications:- Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
- Cast Iron Body
- Full Complement Bearing
- 1-1/2˝ Diameter Piston
- 11/16˝ Diameter Double Heat Treated Pinion Journal
- All Weather Fluid
- Handed
- Adjustable Spring Size 1-5, or Sized 6. Includes Patented Green Dial
- 30 years
- Plastic, Standard
- Metal, Optional
- Self Reaming and Tapping Screws (SRT)
- Stop Face (Push Side)
- Standard Arm and Track with Roller
- Aluminum (689)
- Statuary Bronze (690)
- Light Bronze (691)
- Black (693)
- Dark Bronze (695)
- Brass (696)
- Custom colors optional
- Optional SRI primer - powder coat only
- Optional plated finishes
