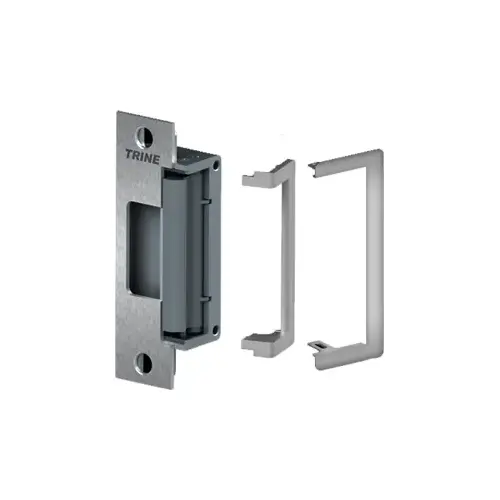

4200 Electric Strike for Cylindrical and Deadlatches, Satin Stainless Steel

Roll over image to zoom in

Trine 4200CC-10B-32DClick To Copy 4200 Electric Strike for Cylindrical and Deadlatches, Satin Stainless Steel

Item #: 4200CC-10B-32D by Trine

UPC #: 500227140492

See reviewsSee reviews

$180.60

/each
SAVE UP TO 18.06

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Color

Satin Stainless Steel

Color Code

10B 32D

Function

Electric Strike

Faceplate Shape

Square Corner

Faceplate Size

4-7/8 In. X 1-1/4 In.

Frame Application

Metal or Wood

Operating Voltage

12VDC/24VDC

Secondary Finish

613/US10B

Secondary Finish Description

Dark Oxidized Satin Bronze Oil Rubbed

Finish

32D Finish

Finish Description

Split Finish

Product Type

Electric Strike

Product Height

(2) 4-7/8"; (1) 6-7/8"; (1) 7-15/16"

Product Width

1-1/16 Inch

ADA Compliant

No

Finish Family

Split Finish

Included Components

(4) Faceplates; Dual Colored Electric Strike

Standards

ANSI/BHMA Grade 1 - A156.31-2007; ETL Listed for UL1034 Burglary Resistant Electric Locking Mechanism; ETL Listed for UL294 (6th Edition)

Faceplate Dimension

(2) 4-7/8" x 1-1/4"; (1) 6-7/8" x 1-1/4"; (1) 7-15/16" x 1-1/4"

Function Family

Electric Strike

Features

Strike to Have Two Different Finishes in One Box; Tallest Latch Cavity in It'S Class At 2-13/16"; POE Friendly Electric Strike; Runs Cool All the Time; No Need of An External 'PAC'; One Piece Locking Mechanism With One Solenoid

Voltage

12/24VAC/DC

For Use With

Cylindrical Locks and Deadlatches

Application

Aluminum, Metal and Wood Frame

Current Draw

0.240A at 12DC; 0.114A at 24DC; 0.210A at 12AC; 0.280A at 16AC; 0.420A at 24AC

Series

4200 Series

Manufacturer Parent

Trine Access Technology

Sub-Series

4200CC-10B-32D

Options

PoE

Access Type

Electric Strike

Alternate Part Number-1

157439

Lock Category

Cylindrical Lock

Pack Size

1

Door Locks & Knobs Product Type

Strike Plates

Product Overview
4200CC-10B-32DElectric Strike for Cylindrical and Deadlatches

Dual colored electric strike (includes pieces for a 32D/clear aluminum finish and a dark bronze finish) for use with cylindrical locks and deadlatches. Made especially for aluminum frames, and for use with wood fames.
Note: For the 4200 with 4 different faceplates sizes and with one finish color, see: 4200.

Features:
  • The only electric strike to have two different finishes in one box.
  • Allows you to match the two most popular frame finishes -- clear aluminum and dark bronze.
  • Competitively priced - at or lower then competition models of the same class.
  • Tallest Latch Cavity in it's Class - at 2 - 13/16" the 4200 offer's almost twice the latch height compared to the competition.
  • Poe Freindly electric strike - 0.240 Amps at 12DC and 0.114 Amps at 24DC
  • Runs Cool all the time, no need of an external 'pac' to reduce strike temperature under continuous duty.
  • Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
Tallest Latch Cavity:
  • Provides maximum flexibility. Be prepared for door sag & other installation issues.
Match the Frame:
  • Electric strikes are best when not seen
Electrical Characteristics:
(Included, no external packs required)
  • Volts - 12DC
  • Currant - 0.240 A
  • Ohms (Ω) - 50 Ω
  • Duty - Intm./Cont.
  • Sound - Silent
  • Wire Color - Blue/Red
  • Volts - 24DC
  • Currant - 0.114 A
  • Ohms (Ω) - 210 Ω
  • Duty - Intm./Cont.
  • Sound - Silent
  • Wire Color - Brown/Red
  • Volts - 12AC
  • Currant - 0.210 A
  • Ohms (Ω) - 50 Ω
  • Duty - Intm.
  • Sound - Buzz
  • Wire Color - Blue/Red
  • Volts - 16AC
  • Currant - 0.280 A
  • Ohms (Ω) - 50 Ω
  • Duty - Intm.
  • Sound - Buzz
  • Wire Color - Blue/Red
  • Volts - 24AC
  • Currant - 0.420 A
  • Ohms (Ω) - 50 Ω
  • Duty - Intm.
  • Sound - Buzz
  • Wire Color - Blue/Red
  • When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.
