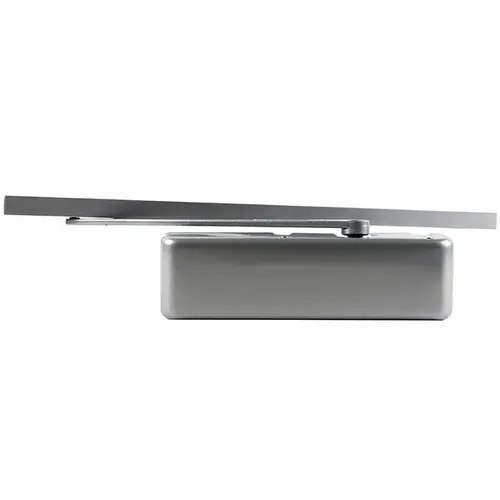

LCN 4211T-STD RH AL 4210T Series Size 1 to 5 Sprayed Aluminum Grade 1 Surface Door Closer, Standard Track Arm, Right Hand
Item #: 4211T-STD RH AL by LCN
UPC #: 840067660362
In Stock $771.86 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Standard 4210 series closer shipped with extra duty arm (non hold-open), metal security cover, and TORX Machine Screw pack
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
- Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts parallel arm, specify right or left swinging door
- 4211 cylinder meets ADA requirements
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- UL listed with EDA or CUSH arms for self-closing doors
- Tested and certified under ANSI Standard A156.4, grade 1
Package Volume
0
Color
Sprayed Aluminum
Hand
RH
Grade
Grade 1
Special Marks
Complies with ADA accessibility guidelines
Cover
Full Metal
Degree Swing
110 Deg.
Type
Surface
Package Qty
1
Hold Open
Without Hold Open
Mounting Location
Push Side
Color Code
689/US28
BAA Qualified
Yes
Mounting Style
Slide Track
Cold Weather Fluid
Yes
Closer Size
1
Handing
Right Hand
Pack Size
1
Manufacturer Warranty
15 Year Limited Warranty
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Commercial/Residential
Commercial
General Color Family
Metallics
General Material
Steel
Hardware Finish Family
Metal
Maximum Door Range (deg.)
110
Product Depth (in.)
3.75
Product Height (in.)
26.5
Product Width (in.)
4.25
Mounting
Top Mount
Warranty
15 Year Limited Warranty
UNSPSC
30171514
The heavy-duty 4210 Smoothee Series closers are high-security closers that feature special components to resist tampering and vandalism and meet ANSI/BHMA A156.4 Grade 1 standards. The closers are UL listed for self-closing doors and boast a 30-year limited warranty. Forged steel parallel arms and heavy gauge metal security covers are designed for correctional, vandal-prone, institutional and other high traffic applications. A choice of finishes and cylinder functions meet correctional and vandal-resistant requirements. Materials include a high-strength cast iron cylinder, a 1-piece forged steel piston, a double-heat-treated pinion, all-weather fluid, tamper-resistant regulating screws and a high-efficiency, full-complement, low-friction bearing. The LCN Green Dial ensures accurate spring force adjustments.
- Standard track arm
- Size 1 to 5
- Push side mount
- Right hand
- 110° swing
- Full body cover
- 15-year limited warranty
- ANSI A156.4, grade 1, UL 10C, ADA
- TORX machine screws
