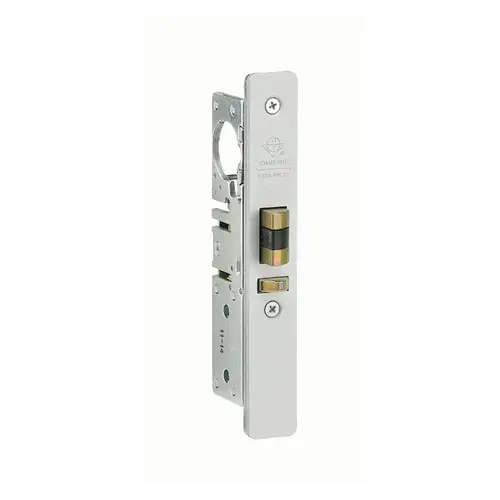

Adams Rite 4511-26-101-313 4511 Standard Duty Deadlatch, Dark Bronze Anodized
Item #: 4511-26-101-313 by Adams Rite
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
- Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
- Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
Thickness
1-3/4" - 2"
Hand
Right Hand or Left Hand Reverse
Color
Dark Bronze Anodized Aluminum
Color Code
313
Function
Deadlatch
Cylinder Type
Less Cylinder
Origin
USA
BAA Qualified
Yes
Package Height
2.125"
Package Length
8.875"
Package Volume
61.29296875
Package Width
3.25"
Bolt Protection
1/2"
Dust Box
Plastic
Latch Backset Dim
31/32"
Latch Type
Guarded Latch
Lock Face Size
6-7/8" x 1"
Package Qty
1
Product Height
1.6"
Product Length
6.88"
Product Width
1"
Screws
Machine
Strike Height
4-5/8"
Strike Number
4901
Strike Type
Flat
Strike Width
1-9/16"
Base Material
Aluminum
Finish
Dark Bronze Anodized
Finish Description
Dark Bronze Anodized
Product Type
Storefront Lock
Series
4510 Series
Strike Size
4-5/8 Inch
Manufacturer Parent
Assa Abloy
Handing
Right Hand or Left Hand Reverse
Corrosion Resistant
Yes
Faceplate Dimension
1" x 6-7/8"
Latch Throw
1/2 Inch
Case Dimensions
1" x 5-13/16" x 1-19/32"
Sub-Series
CL_Storefront_Locks_adams_rite_45
ADA Compliant
No
Latch Bolt Material
Metal
For Door Type
Aluminum Doors; Swinging Doors
Application
Healthcare; Financial Institutions; Retail
Function Family
Storefront Deadlatch
Latch Size
1/2" x 1"
Features
Standard Duty Deadlatch Offers Flexibility of Traffic Control During and After Business Hours; Deadlocks Latchbolt to Prevent "Loiding" or Case Knife Entry; Bolt Holdback
Faceplate Shape
Radius
Backset
31/32 Inch
Included Components
Strike; Mounting Screws
Cylinder Type Used
Accepts Any Standard 1" Length, 1-5/32" Diameter Mortise Cylinder with MS Cam (4036 Mortise Cylinder or 4066 Thumbturn)
Strike Lip
Standard Jamb
Finish Family
Dark Bronze
Product Overview
4510 SeriesStandard Duty Deadlatch
510 Standard Duty Deadlatches provide flexible traffic control during and after business hours. Function - The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape. They do not, however, provide the same maximum security level as the MS®Deadlock. Operation - Turn key or operate handle or paddle to retract spring-loaded latchbolt. To holdbolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard mortise cylinder with MS® cam, available separately. Lock accepts any standard 1" (25.4 mm) length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.
Features: Cylinder Backset:- 7/8" (22.2 mm)
- 31/32" (24.6 mm)
- 1-1/8" (28.6 mm)
- 1-1/2" (38.1 mm)
- Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth (25.4 mm x147.6 mm x depth). Depth varies by backset.
- While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2" (12.7 mm x 25.4 mm x 12.7 mm) throw.
- All metal. Deadlocks latchbolt to prevent "loiding" or case-knife entry.
- Measures 1" x 6-7/8" (25.4 mm x 174.6 mm).
- Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for center hung doors.
- Individually boxed with strike and mounting screws. Cylinder, paddle, handle available separately.
- 1-1/4 lbs (.57 kg). Also available in a 25-unit pack for volume customers. Please contact factory for more information.
- Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
- Available without faceplate or strike plate, select 4513.
- Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized.
