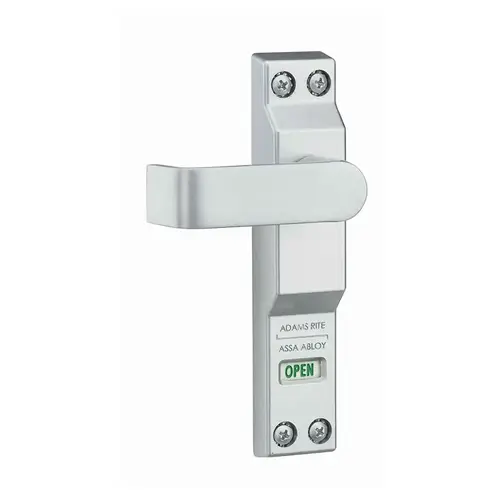

Adams Rite 4550L-02-130Click To Copy Aluminum Door Trim Satin Aluminum Ritecoat Paint
Item #: 4550L-02-130 by Adams Rite
See reviewsSee reviews
HURRY! Low in stock
$226.01
/eachSAVE UP TO 22.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Housing: Aluminum casting is 1-3/8” wide x 7-1/2” long x 1” deep.
- Lever: 3” long aluminum with end-return design offers comfortable grip to lock or unlock.
- Indicator: Words “LOCKED” in red letters or “OPEN” in black letters appear on white background when lock is thrown or retracted. Indicator is driven by lock bolt itself.
- Stop Clearance: Lever housing projects 11/16” forward of cylinder backset centerline. Depending on height of door stop and width of door/jamb gap, it may be necessary to modify the stop to clear the housing. For fin type stops, this is easily accomplished. Hollow stops may preclude use of lever.
- Compatible Deadlocks: Any MS® pivoted bolt deadlock including “Schoolhouse” versions can be fitted with the 4550 including MS1850S, MS1950, MS1837, etc. Derivative units such as 1870, 1870HM, or 1877 flushbolts (bolt into threshold) are also operable by the 4550 lever. Not compatible with MS+1890 Deadlock/Latch or with 7/8” backset locks.
- Options: Available in three finishes to match anodized aluminum finishes. Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing.
- Standard Package: Individually boxed with installation instructions, mounting screws, and drive pins for both single point and threshold bolt-equipped locks. Shipping weight: 1 lb.
Thickness
2-1/8" - 2-1/4"
Package Volume
104.6875
Color
Satin Aluminum Ritecoat Paint
For Use With
MS1850S, MS1950, MS1837, etc.
Product Width
1.4063"
Hand
LH
Product Height
2.375"
Package Qty
1
Package Height
2.5"
Screws
Machine
Package Width
5"
Color Code
130
Origin
USA
BAA Qualified
Yes
Product Length
7.2344"
Rose/Escutcheon Design
Rectangle with Indicator
Base Material
VARIES
Lever/Knob Design
Flat Lever w/Return
Package Length
8.375"
Product Overview
Lever Trim for MS Deadlock, Flat Lever with Return, LOCKED/OPEN Indicator, LH or LHR, Satin Aluminum Paint
Easy unlocking of any MS Deadlock by approximately 3 lbs. downward force on a 3 In. lever. Lever is spring loaded to horizontal, relocks with upward motion. Indicator signals lock status. Can be installed in place of existing key cylinder or cylinder type thumbturn on inside of door. 4550 Deadlock Lever not compatible with 7/8 In. backset locks. Turn lever downward 90 Deg. to unlock. When released, lever returns to horizontal. Turn lever upward 90 Deg. to relock. Key operation from outside is not affected. Clutching action prevents damage to internal components. compatible with any MS pivoted bolt deadlock including "Schoolhouse" versions can be fitted with the 4550 including MS1850S, MS1950, MS1837, etc. Derivative units such as 1870, 1870HM, or 1877 flushbolts (bolt into threshold) are also operable by the 4550 lever. Not compatible with MS+1890 or 2190 Deadlock/Latch or with 7/8 In. backset locks. Individually boxed with installation instructions, mounting screws, and drive pins for both single point and threshold bolt-equipped locks.
Easily unlocks an MS®Deadlock with approximately three pounds of downward force.
Lever is spring loaded to horizontal, relocks with upward motion. Indicator signals lock status. Can be installed in place of existing key cylinder or cylinder type thumbturn on inside of door. 4550 Deadlock Lever not compatible with 7/8" backset locks.
