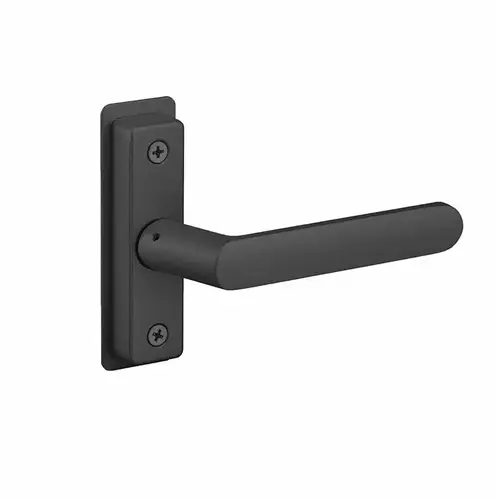

Adams Rite 4568-501-119 4568 Eurostyle Deadlatch Straight Handle, Black Painted
Item #: 4568-501-119 by Adams Rite
Brand: Adams Rite
UPC #: 500227177825
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Levers: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze, or 119 Black. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. 4569 has return end to meet anti-snag code requirements.
- Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
- Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The three standard handles shown are for 1-3/4” thick doors. Available on special order for doors up to 3-1/4”.
- Standard Package: Packed individually with cam plug handed LH or RH as specified. Mounting screws included. Shipping weight: 1/2 lb.
Thickness
1-3/4" - 2"
Package Volume
61.875
Color
Satin Black Ritecoat Paint
For Use With
4300; 4500; 4900 Series Deadlatches
Product Width
1-11/32 Inch
Hand
Left Hand/Left Hand Reverse
Product Height
4-3/16 Inch
Package Qty
1
Package Height
2.75"
Screws
Machine
Package Width
4.5"
Color Code
119
Origin
USA
BAA Qualified
Yes
Product Length
3.95"
Rose/Escutcheon Design
Rectangle
Base Material
VARIES
Lever/Knob Design
Flat Euro Lever, No Return
Package Length
5"
Finish
Black Painted
Finish Description
Black
Lever Style
8 Straight Lever
Product Type
Lock Part/Accessory
Series
4500 Series
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Handing
Reversible
Function
Deadlatch Handle
Handle Type
Straight Lever
Door Thickness
1-3/4" to 2"
Product Material
Cast Aluminum (Handle)
Lever Size
4-23/32 Inch
Hole Center to Center
3 Inch
Function Family
Part/Component
Product Projection
2-11/32 Inch
Features
Handles Fit Solidly into the Cylinder Hole of Adams Rite Deadlatches; Steel Mounted Base is Secured by Hidden Screws and has Two Large Helical Compression Springs
ADA Compliant
YES
Finish Family
Black
Included Components
Mounting Hardware
Manufacturer Parent
Assa Abloy
Escutcheon Thickness
41/64 Inch
Escutcheon Size
4-3/16" x 1-11/32"
Sub-Series
PA_Locks_Parts_adams_rite_59
Pack Size
1
Package Quantity
1
Keyway
None
UL Listed
No
Keying
Non-Keyed
Door Handing
Left-Hand In-Swing
UNSPSC
46171501
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Dimension
1-11/32" x 4-3/16" Plate
Use With
Deadlatch
Material
Steel
Fire Rated
No
Manufacturer Warranty
Limited 5 Year Warranty
Hazardous Material
No
Finish code
119
No of inners
1
Commercial/Residential
Residential
Lockset Function
Passage
Product Overview
4560Deadlatch Handles
The 4560 Series Deadlatch Handles easily unlock the 4300, 4500 and 4900 Series Deadlatches. These handles fit solidly into the cylinder hole of Adams Rite deadlatches.
Function:- Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam plug that mounts on the handles' escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.
- 4560 handles feature an ADA compliant lever shaped to fit the hand.
- Ordered for left hand (LH) or right hand (RH) door, but is easily reconfigured in the field to accommodate either door swing.
- Standard handles are for 1 3/4" (44.5 mm) thick doors. Please contact factory for doors up to 3 1/4" (82.6 mm) available by special order.
- ADA compliant lever is shaped to fit the hand, with a concave thumbrest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.
- A 1/4" (6.4 mm) square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever. 4560, 4565 use the same sloping 1 3/8" x 4" (34.9 mm x 101.6 mm) escutcheon, designed to match the clean lines of a narrow stile door.
- Secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
- Individually packaged with mounting hardware and cam plug handed LH or RH as specified.
- MS+1890 Deadlock/Latch, 2190 Series Interconnected Deadbolt/Deadlatch (4568, 4569 only)
- 4300 Electrified Deadlatches, 4510, 4530, 4900, 4920AN Series Deadlatches.
- 121 - To Match 313 Dark Bronze Anodized
- 130 - To Match 628 Clear Anodized
