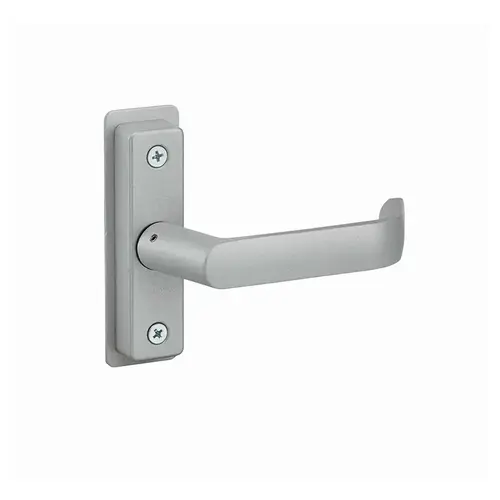

Adams Rite 4569-602-130 Aluminum Door Trim Satin Aluminum Ritecoat Paint
Item #: 4569-602-130 by Adams Rite
See reviewsSee reviews
HURRY! Low in stock
$85.83
/eachSAVE UP TO 8.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Levers: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze, or 119 Black. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. 4569 has return end to meet anti-snag code requirements.
- Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
- Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The three standard handles shown are for 1-3/4” thick doors. Available on special order for doors up to 3-1/4”.
- Standard Package: Packed individually with cam plug handed LH or RH as specified. Mounting screws included. Shipping weight: 1/2 lb.
Thickness
2-1/4" - 2-1/2"
Package Volume
61.875
Color
Satin Aluminum Ritecoat Paint
For Use With
4300, 4500 and 4900 Series
Product Width
1.3438"
Hand
RH
Product Height
2.34"
Package Qty
1
Package Height
2.75"
Screws
Machine
Package Width
4.5"
Color Code
130
Origin
USA
BAA Qualified
Yes
Product Length
3.95"
Rose/Escutcheon Design
Rectangle
Base Material
VARIES
Lever/Knob Design
Flat Euro Lever w/Return
Package Length
5"
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Product Overview
Flat Euro Lever Trim with Return, For 2-1/4 In. to 2-1/2 In. Thick Door, RH or RHR, Satin Aluminum Paint
Euro style lever handles are designed to operate 4500, 4700, 4900 series latches with a natural downward motion. These handles include an activator cam disc that mounds on the handle escutcheon and fits solidly into the latch lock. Not intended for use as a door pull. Mounting screws are hidden for a clean, modern look. Lever and cam disc are easily handed. Standard unit fits 1-3/4 In. thick doors. Available for doors up to 3-1/4 In. thick. Packed individually with cam plug and two 10-32 mounting screws.
These handles fit solidly into the cylinder hole of the latch.
Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.
Escutcheons: Both handles shown use the same 1-3/8" x 4" escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs. (One becomes a “spare" once handing is given.) A 1/4" square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
