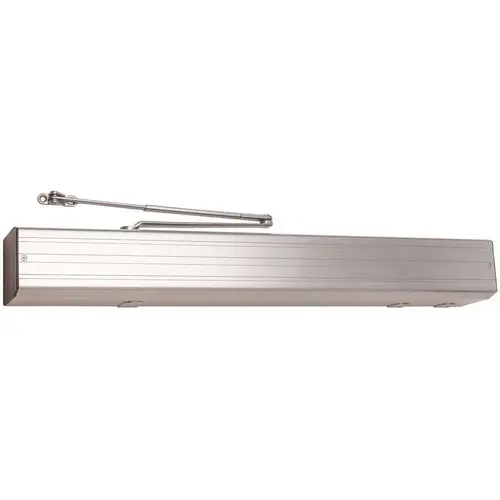

Auto Equalizer 4600 Series Size 1 to 4 Sprayed Aluminum Electro-Hydraulic Power Operator, Top Jamb Push Side Mount

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LCN 4642-REG AL Auto Equalizer 4600 Series Size 1 to 4 Sprayed Aluminum Electro-Hydraulic Power Operator, Top Jamb Push Side Mount

Item #: 4642-REG AL by LCN

UPC #: 840067661284

See reviewsSee reviews
See reviews summary
In Stock

$5,272.96

/each
SAVE UP TO 527.30
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 206 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Standard, top jamb (push side) mounted 4640 series closer shipped with regular arm, metal cover, and wood and machine screw pack. Actuators available separately, see pages 199-215.
  • Digital Control Suite
  • Meets ADA, requirements (power mode).
  • Utilizes a 4040 Heavy Duty Door Closer
  • On Board Diagnostics and Power Supply
  • Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
  • Non-handed for either right or left swinging door.
  • Factory Default Memory
  • Includes "No Destruct" Drive System
  • 4640 has easily accessible switches to provide on/off and continuous hold open functions. 4640CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
  • Standard or optional custom powder coated finish, end caps are black.
  • Optional plated finish on cover, arm, and fasteners.

Package Volume

0

Color

Sprayed Aluminum

Hand

Non-Handed

Grade

Grade 1

Special Marks

Complies with ADA accessibility guidelines

Cover

Full Metal

Type

Surface

Package Qty

1

Mounting Location

Push Side

Color Code

689/US28

BAA Qualified

Yes

Mounting Style

Top Jamb

Cold Weather Fluid

Yes

Closer Size

Adj. 2 to 5

Finish

Aluminum Painted

Series

4640 Series

Spring Size

Adjustable 2-5

Function

Push Side Operator

Mount

Push Side

Finish Description

Aluminum Painted

Product Type

Door Operator

Voltage

120 volt

Pack Size

1

Manufacturer Warranty

2 Year Warranty

Builders Hardware Product Type

Door Closer

Certifications and Listings

ANSI Certified

Commercial/Residential

Commercial

General Color Family

Metallics

General Material

Steel

Hardware Finish Family

Metal

Maximum Door Range (deg.)

110

Product Depth (in.)

5.375

Product Height (in.)

40

Product Width (in.)

10.375

Mounting

Top Mount

Warranty

2 Year

ADA Approved

False

Healthy Solution

Touchless

UNSPSC

31162800

healthy_solution

Touchless

Manufacturer Parent

Allegion

Minimum Top Rail Width

1-3/4 Inch

Closer Arm Type

Regular Arm

Power Input

120V

Sub-Series

DC_Power_Operators_lcn_1

ADA Compliant

YES

Mounting Type

Top Jamb Push Side

Frame Reveal

4-1/2" to 8"

Function Family

Power Door Operator

Standards

Grade 1 ANSI A117.1; A156.19; UL 10C; ADA; BAA

Overall Length

33-1/2 Inch

Features

Cast Iron Body; Full Complement Bearing

Fastener Type

Wood and Machine Screws

Minimum Door Width

36 Inch

For Door Width

36" to 54"

Finish Family

Aluminum

Dimension

33-1/2" x 4-3/8" x 5-3/16"

Material

Cast Iron

Hold Open

No

UL Listing Type

UL 10C Rated

Closer Type

Automatic Operator

Hazardous Material

No

Finish code

689 (AL)

No of inners

1

Product Overview
4640 Series Auto EqualizerElectrically Powered Closer

The 4640 AUTO EQUALIZER™ is LCN’s SMART & RELIABLE electrically powered low-energy power operator. It provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Specifications: Certifications:
  • Grade 1 - ANSI A117.1, A156.19, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 3/4" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Non-Handed
Handing:
  • Adjustable Spring Size 2-5
Warranty:
  • 2 years
Cover:
  • Metal, standard
Fasteners:
  • Wood and machine screws
Mounting:
  • Top jamb (Push Side)
Arms:
  • Regular arm, standard
  • Long arm, optional
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes*
  • *End caps are black
