470 Series Cylindrical Deadbolt, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

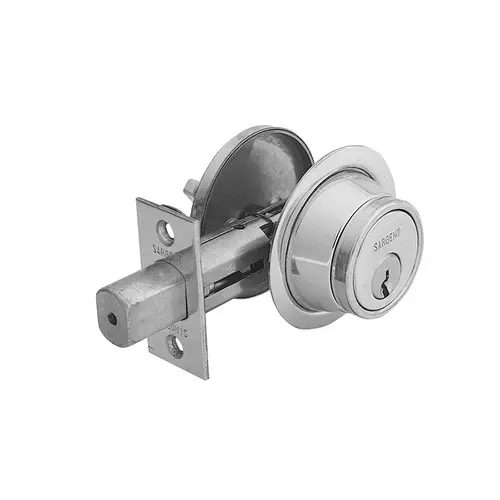

Sargent 475 26D 470 Series Cylindrical Deadbolt, Satin Chrome

Item #: 475 26D by Sargent

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$115.63

/each
SAVE UP TO 11.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Package Qty

1

ANSI Function

E0150 - Single Cylinder Deadlock

Function

5-Single Cylinder w/Thumbturn Deadlock

Color Code

626/US26D

Color

Satin Chrome

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 2

Backset

2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner

Keyway

Sargent LA

Strike

Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner

Cylinder Type

Conventional

Finish Description

Satin Chrome

Keyblank Grouping

SRGT-LA-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Auxiliary Lock

Series

470 Series

Keying Charges

CCAM

Standards

ANSI BHMA A156.36; UL and CUL Listed

Cylinder Type Used

Conventional

Interior Lock Type

Thumbturn

Front Material

Stamped Brass

Exterior Lock Type

Keyed

Front Size

2-1/4" x 1"

Function Family

Cylinder With Turn Deadbolt

Deadbolt Material

Brass

Features

Bolt With Hardened Steel Pin

ADA Compliant

No

Finish Family

Satin Chrome

Strike Size

2-3/4 Inch

Cylinder Material

Brass

Manufacturer Parent

Assa Abloy

Sub-Series

CL_Deadbolt_Locks_sargent_2

Product Overview
470 SeriesGrade 2 Deadbolts

Ideally suited for apartments and hotels, the 470 series is a Grade 2 cylindrical deadbolt that is certified to ANSI/BHMA A156.36 standards.

Specifications: For Doors:
  • 1-3/4" (44mm) to 2-3/8" (61mm) door thickness [except 475 with 2-1/16" (53mm) maximum thickness.]
Door Prep:
  • 1-1/2" dia. (38mm) hole standard for all functions 2-1/8" dia. (54mm) hole (161 door prep) for 474 and 475 only with adapter ring provided
Backsets:
  • 2-3/8" (61mm) or 2-3/4" (70mm) adjustable backset
Strike:
  • 406 Strike standard
Bolt:
  • Brass with hardened steel pin 5/8" (16mm) x 13/16" (21mm) x 1' (25mm) throw
Cylinder:
  • Brass, 6 pin cylinder 2 keys provided
Masterkeying:
  • Can be masterkeyed. Construction key system available
ANSI/BHMA:
  • Designed to meet A156.36 Grade 2
Front:
  • Stamped brass 2-1/4" (57mm) x 1" (25mm) wide with filler for 1-1/8" (29mm) wide
Hand:
  • Universal – non handed
Finishes:
  • 03, 04, 10, 10B, 10BE, 14, 15, 26, 26D, BSP, WSP
