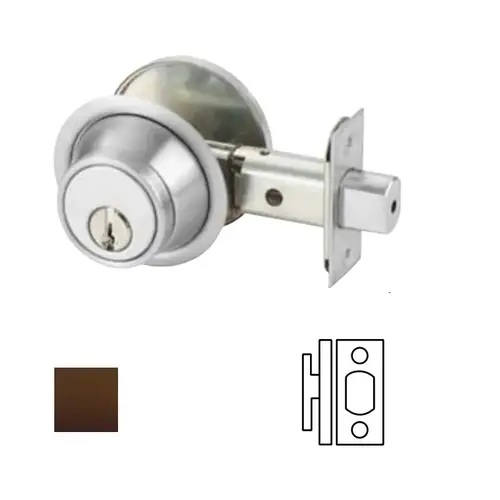

470 Series 479 Thumbturn Inside Only Deadbolt, Oil Rubbed Dark Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sargent 479 10B 470 Series 479 Thumbturn Inside Only Deadbolt, Oil Rubbed Dark Bronze

Item #: 479 10B by Sargent

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$89.05

/each
SAVE UP TO 8.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Color

Dark Oxidized Satin Bronze Oil Rubbed

Color Code

613/US10B

Function

9-Exit/Thumbturn Inside Deadlock

Package Qty

1

Finish

Oil Rubbed Dark Bronze

Finish Description

Oil Rubbed Dark Bronze

Grade

ANSI/BHMA Grade 2

Strike

Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner

Product Type

Auxiliary Lock

Rose/Escutcheon Trim

Round Rose

Backset

2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner

Series

470 Series

ADA Compliant

No

Finish Family

Dark Bronze

Strike Size

2-3/4 Inch

Standards

ANSI BHMA A156.36; UL and CUL Listed

Interior Lock Type

Thumbturn

Front Material

Stamped Brass

Exterior Lock Type

No Trim

Front Size

2-1/4" x 1"

Function Family

Turn Only Deadbolt

Features

Bolt With Hardened Steel Pin

Manufacturer Parent

Assa Abloy

Sub-Series

CL_Deadbolt_Locks_sargent_3

Product Overview
470 SeriesGrade 2 Deadbolts

Ideally suited for apartments and hotels, the 470 series is a Grade 2 cylindrical deadbolt that is certified to ANSI/BHMA A156.36 standards.

Specifications: For Doors:
  • 1-3/4" (44mm) to 2-3/8" (61mm) door thickness [except 475 with 2-1/16" (53mm) maximum thickness.]
Door Prep:
  • 1-1/2" dia. (38mm) hole standard for all functions 2-1/8" dia. (54mm) hole (161 door prep) for 474 and 475 only with adapter ring provided
Backsets:
  • 2-3/8" (61mm) or 2-3/4" (70mm) adjustable backset
Strike:
  • 406 Strike standard
Bolt:
  • Brass with hardened steel pin 5/8" (16mm) x 13/16" (21mm) x 1' (25mm) throw
Cylinder:
  • Brass, 6 pin cylinder 2 keys provided
Masterkeying:
  • Can be masterkeyed. Construction key system available
ANSI/BHMA:
  • Designed to meet A156.36 Grade 2
Front:
  • Stamped brass 2-1/4" (57mm) x 1" (25mm) wide with filler for 1-1/8" (29mm) wide
Hand:
  • Universal – non handed
Finishes:
  • 03, 04, 10, 10B, 10BE, 14, 15, 26, 26D, BSP, WSP
