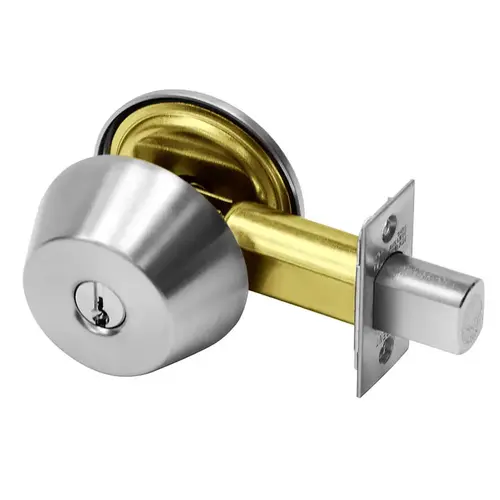

Sargent 487 26DClick To Copy 480 Series 487 Classroom Deadbolt, Satin Chrome

480 SeriesGrade 1 Deadbolts

Ideally suited for heavy-duty industrial and security applications, the 480 Series is a high-grade cylindrical deadbolt that is certified to ANSI/BHMA A156.36 Grade 1 standards.

Specifications: For Doors:

• 1-3/8" (35mm) to 1-3/4" (44mm) thick standard For doors over 1-3/4" (44mm) consult factory (2-1/4" Thick door max)

Door Prep:

• Fits 161 (standard) cut outs and Fits 160 with 2-3/8" (60mm) backset with 1" (25mm) front and for 1-3/8" (35mm) thick door

Backsets:

• 2-3/4" (70mm) standard. 2-3/8"

Strike:

• Wrought brass, bronze or stainless steel

Bolt:

• Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw

Cylinder:

• Brass, 6 pin. 2 nickel silver keys

Masterkeying:

• Can be masterkeyed. Construction key system available

Front:

• Wrought brass, bronze or stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard

Hand:

• Non handed, field reversible

Turn LeverNon-ferrous:

• Non-ferrous

Housing:

• Non-ferrous, reinforced, one piece 2-1/2" (64mm) diameter

ANSI/BHMA:

• A156.36 Certified Grade 1

UL/cUL Listed:

• UL listed to U.S. and Canadian safety standards

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

Finishes:

• 03, 04, 09, 10, 10B, 10BE, 14, 15, 26, 26D, BSP, WSP For other finishes consult factory
