Exit Function Mortise Deadbolt, Inside Turn Only, Bright Brass

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

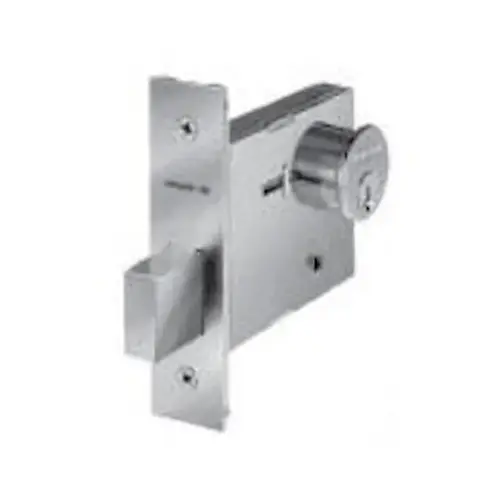

Sargent 4879 3 Exit Function Mortise Deadbolt, Inside Turn Only, Bright Brass

Item #: 4879 3 by Sargent

See reviewsSee reviews
See reviews summary

$309.69

/each
SAVE UP TO 30.97
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Color

Bright Brass

Color Code

605/US3

Function

79-Exit Deadlock

Package Qty

1

Door Thickness

1-3/4 inch

Strike

Deadbolt, 1-1/8 Inch x 3-1/2 Inch, Square Corner

Deadbolt Throw

1 Inch

Finish Description

Bright Polished Brass

ADA Compliant

No

Finish Family

Polished Brass

Keying Type

Keyed Random

Strike Size

3-1/2 Inch

Standards

UL and CUL Listed

Interior Lock Type

Thumbturn

Exterior Lock Type

No Trim

Function Family

Single Cylinder Deadbolt

Deadbolt Material

Laminated Stacked Steel

Features

Deadbolt With Hardened Pin; Heavy Wrought Steel Case; Field Reversible Hand

Product Type

Auxiliary Lock

Series

4870 Series

Manufacturer Parent

Assa Abloy

Sub-Series

CL_Deadbolt_Locks_sargent_16

Grade

ANSI/BHMA Grade 1

Backset

2-3/4 Inch

Product Overview
4870 SeriesDeadbolts

Ideally suited for high-traffic facilities like schools and hospitals, the 4870 Series features a laminated stacked steel deadbolt and high-quality construction to provide maximum security, performance and durability.

Specifications: For Doors:
  • Door thickness 1-3/4" (44mm) standard (For thicker doors, consult factory)
Backset:
  • 2-3/4" (70mm) only
Strike:
  • # 480 Strike Standard: 3-1/2" (89mm) x 1-1/8" (29mm)
Bolt:
  • Laminated Stacked Steel Deadbolt with Hardened Pin and a 1" throw
Cylinder:
  • Brass 6 pin. Two nickel silver keys per lock (Control key must be ordered separately, when required)
Cylinder Ring:
  • 97 Rosette (standard with #41 Cylinder)
  • NOTE: See 8200 Mortise Lock catalog for details on cylinder collar kit.
Case:
  • Heavy wrought steel, .093 thick, protected with a zinc dichromate finish
Outside Front Plate:
  • Brass, bronze, stainless steel. 4-5/8" (117mm) x 1-1/8" (29mm)
  • Adjustable for flat or beveled doors (bevel adjustment 1/8" (3mm) in 2" (51mm)
Hand:
  • Non handed, field reversible (except for 74-)
Thumb Turn:
  • 130W ADA Thumb turn (standard); optional larger thumb turn (specify LB-)
UL/cUL Listed:
  • Listed for use on fire doors
Finishes:
  • 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, 32, 32D, BSP, WSP For other finishes consult factory
