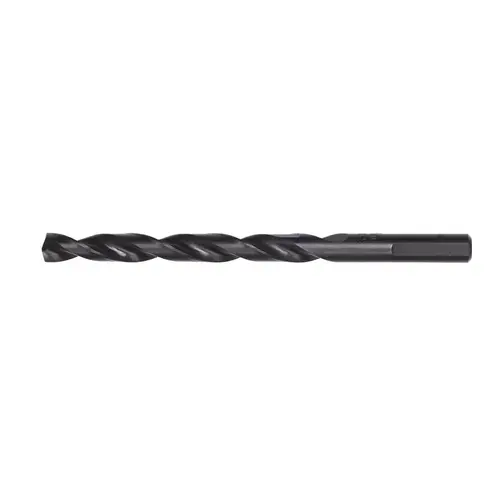

Milwaukee 48-89-2726 Jobber Drill Bit, 5/16 in Dia, 4-1/2 in OAL, Parabolic Flute, 3-Flute, 5/16 in Dia Shank Black Oxide
Item #: 48-89-2726 by Milwaukee
UPC #: 045242166961
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Thicker web provides greater strength and longer life
- Black oxide coating provides lubricity and resists corrosion of the bit
- 135 deg split-point tip starts on contact to prevent walking, while the parabolic flute clears chips fast
- 3-flat Secure-Grip shank holds the bit firmly in the drill chuck
Material
HSS
Drill Bit Size
0.3125 in.
Shank Diameter
5/16"
Assembled Depth (in.)
0.31
Assembled Height (in.)
6.75
Assembled Width (in.)
1.88
Bit Diameter
5/16 in
Bit Length (in.)
4.5
Bit Material
Black Oxide
Bit Style
Spiral
Drill Bit Type
Twist
Drill Bit Type(s) Included
Twist
Drilling Length
3.1875 in.
Individual/Set
Individual
Material Application
Aluminum, Duct/Sheet Metal, PVC, Steel, Wood
Power Tool Product Type
Power Tool Accessory
Shank Style
3-Flat
Surface Application
Metals
Tools Product Type
Power Tool
Suitable For
Portable Drills
Flute Type
Parabolic
Shank Type
3-Flat
Applicable Materials
Metal Plastic PVC Wood
Flute Length
3-3/16"
Number of Flutes
3
Point Angle
135 deg
Cutting Direction
Right Hand
Cutting Edge Material
HSS
Nomenclature
48-89-2726 DRILL BIT 5/16
Quick Change Shank
No
Point Type
Split
Diameter
5/16"
Finish
Black Oxide
Overall Length
4-1/2"
Application
For drilling on curved surfaces
Shank Length
1-5/16"
Drill Size
5/16"
Number in Package
1 pc
Packaging Type
Carded
Defective Code
A
Each Weight
0.100 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Thunderbolt
Velocity
A
Vendor Internet Sales Policy
Sale of this product on third-party online marketplaces (eg. Amazon, eBay, Walmart) is prohibited.
Product Type
Drill Bit
Length
4-1/2 In.
Drilling Depth
3-3/16 In.
Tip Angle
135 Degree
Standards
ANSI
Series
48-89-27
Drill Bit Material
High Speed Steel
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Black Oxide
Coolant Through
No
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.3125
Drill Bit Size (Inch)
5/16
Drill Bit Size Range (Decimal Inch)
0.3000 - 0.3500
Drill Point Angle
135 degrees
Flute By Diameter Ratio
10xD
Flute Length (Decimal Inch)
3.1875
Flute Length (Inch)
3-3/16
Maximum Drilling Depth (Decimal Inch)
3.1875
Maximum Drilling Depth (Inch)
3-3/16
Number of Flats
3
Overall Length (Decimal Inch)
4.5
Overall Length (Inch)
4-1/2
Shank Diameter (Decimal Inch)
0.3125
Shank Diameter (Inch)
5/16
Shank Length (Decimal Inch)
1.3125in
Shank Length (Inch)
1-5/16
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Specification Designation
ANSI
Web Configuration
Parallel
Web Thinning
Web-Thinned
Height
0.31
Width
1.88
ECCN
EAR99
Country Origin Code
TH
Product Overview
BIT DRL BLKOX 135DEG SP 5/16IN
Milwaukee Thunderbolt black oxide jobber length drill bits are designed for extreme durability and long life. The Thunderbolt web features a thicker core than a standard drill bit to provide ultimate strength and protect against side-load breakage. A specially designed parabolic flute form clears chips fast, while the 3-flat Secure-Grip shank holds the bit firmly in the drill chuck. The 135 deg split point tip delivers a precision start and prevents walking for fast, accurate holes. Effective for drilling on curved surfaces, Milwaukee Thunderbolt black oxide bits require less effort to drill through metal, wood and PVC and are highly recommended for use with portable drills.
