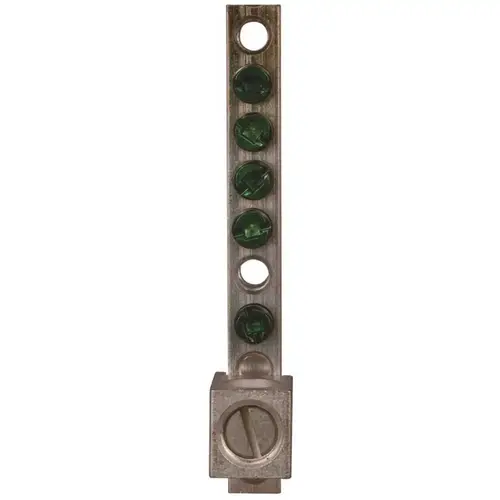

Eaton GBK520 5-Terminal Ground Bar for Type CH and Type BR Panels Stainless

Item #: GBK520 by Eaton Corporation

Brand: Eaton

UPC #: 782114014356

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$50.76

/each
SAVE UP TO 5.08
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Product Width (in.)

1

Product Height (in.)

0.25

Product Depth (in.)

4

Number of Positions

5

Certifications and Listings

ANSI Certified, UL Listed

Manufacturer Warranty

Limited 1 Year

Certifications

UL

Hole Pattern

Linear

Warranty

Limited 1 Year

Width

0.375 in.

Length

3.59 in.

Thickness

0.4375 in.

Pack Size

1

UNSPSC

39121613

MADE IN THE USA

Yes

Package Quantity

1

UL Listed

No

Color

Black

For Use With

Used with CH loadcenters,for 2/4 in. circuit loadcenters use type GBK5 or GBK520 ground bar

Recommended Environment

Indoor, Outdoor

Assembled Product Depth

4 in.

AbilityOne

No

ADA Compliant

No

Electrical Box Type

Load Center

Circuit Breaker Type

Type CH Circuit Breaker, Type BR Circuit Breaker

Assembled Product Height

0.25 in.

Features

1-3/4 in. mounting hole distance

Assembled Product Width

1 in.

Indoor/Outdoor

Indoor/Outdoor

GSA Approved

No

TAA/BAA Compliant

Yes

Product Overview

Ground bars are required in all panels (main service panels include ground and neutral). To be sure you are selecting the correct ground bar, divide the number of circuits in the panel by 2 and pick the closest numbered ground bar. For example, a 20-circuit panel would require a GBK10P. Eaton is a trusted name in electrical products for over 175-years.

  • Distance between mounting holes is 1-3/4 in.
  • Number of terminals: 5
  • Size: 3/4 in.
  • Used with: CH loadcenters, for 2/4 circuit loadcenters use type GBK5 or GBK520 ground bar
  • Includes: 1-2/0 lug
