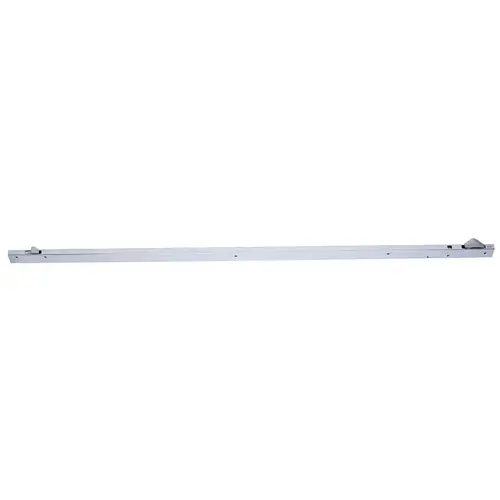

52" Door Coordinator with 20" Filler Bar Aluminum Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ives Commercial COR5228FL20 52" Door Coordinator with 20" Filler Bar Aluminum Finish

Item #: COR5228FL20 by Ives Commercial

See reviewsSee reviews
See reviews summary
In Stock

$196.01

/each
SAVE UP TO 19.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 67 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Part of the Schlage Family of Products
  • All Mounting Hardware Included
  • Made with Durable Materials
  • Easy Installation
  • Limited 1 Year Warranty

Finish

Aluminum

Handing

Non Handed

Series

Commercial Series

Channel Length

52 Inch

Application

Pair of 3ft Doors

Color Code

628/US28

Function

Door Coordinator

Door Size

62 Inch to 92 Inch

Door Opening

62" to 92"

Finish Description

Satin Aluminum

ADA Compliant

No

Finish Family

Aluminum

Product Material

Aluminum

Standards

Meets ANSI/BHMA A156.3 Type 21A; UL Listed

Features

Adjustable Override Feature Which Allows the Active Door to Close Under Extreme Pressure; Active Door Lever, Located Nearest to the Active Stop, Holds the Active Door Open Until the Trigger Mechanism is Released by the Closing of the Inactive Leaf

Product Type

Door Accessory

Manufacturer Parent

Allegion

Sub-Series

Ives-COR52-FL20

Projection

1-5/8"

Dimension

52"

Material

Aluminum

Manufacturer Warranty

Limited 1 year warranty

Hazardous Material

No

Finish code

US28

No of inners

1

Product Overview
COR Bar coordinators
  • The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other
  • All COR units function easily. The active door lever, located nearest to the active stop, holds the leaf
  • All COR units do not function correctly with swing clear hinges. Consult with Banner Solutions tech sales when used with 3/4" offset pivots
  • All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure
  • All COR units are compatible with flush bolts
  • For openings where doors are unequal size. The coordinator length should equal the active door width plus approximately 1/2 the inactive door width. The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops
  • The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines

Certifications
  • Meets ANSI A156.3 Type 21A
  • UL Listed for installation on labeled frame
