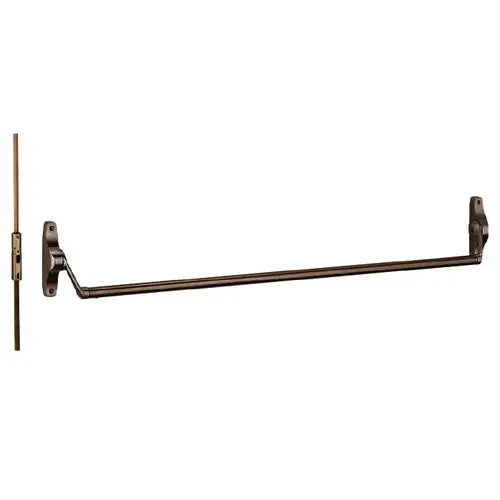

Von Duprin 5547EO US10B RHR 5547EO Concealed Vertical Rod Exit Device RHR, Oil Rubbed Dark Bronze

Item #: 5547EO US10B RHR by Von Duprin

See reviewsSee reviews
See reviews summary
In Stock

$4,154.15

/each
SAVE UP TO 415.41
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions Device ships EO/DT/NL/L
  • Crossbar length 42" (1067 mm)
  • Crossbar height to finished floor 36 13/16" (935 mm) at center
  • Lock stile case 7 1 /4" x 1 3 /16" x 2 1 /4" (184 mm x 30 mm x 57 mm)
  • Hinge stile case 7 1 /4" x 1 3 /16" x 2 1 /4" (184 mm x 30 mm x 57 mm)
  • Crossbar tubing 1" (25 mm)
  • Projection Crossbar neutral – 3 3/4" (95 mm) Crossbar depressed – 2 3/8" (60 mm)
  • Latch bolt 3/4" (19 mm), throw
  • Fasteners and Sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included.

Color

Dark Oxidized Satin Bronze Oil Rubbed

Physical Appearance

Narrow Stile Crossbar

Hand

Right Hand Reverse

Grade

Grade 1

Fire Rated

No

Device Type

Concealed Vertical Rod Device

Package Qty

1

Includes Trim

No

Color Code

613/US10B

Base Material

Bronze

Handing

Right Hand Reverse

Function

Exit Only

Device Length

48 Inch (4 Foot)

Stile

Narrow Stile

Door Height

8 Foot (96 Inches)

Finish

Oil Rubbed Dark Bronze

Finish Description

Oil Rubbed Dark Bronze

Product Type

Exit Device

Series

5547 Crossbar

Length

4

Dogging Options

Hex Key Dogging

Trim Options

EO Exit Only

For Door Thickness

1-3/4 Inch to 2-1/4 Inch

Device Trim ANSI Function

01

Manufacturer Parent

Allegion

Stile Width

1-3/4 Inch

Device Rating

Panic Exit Hardware

For Door Height

6 Foot 8 Inch to 8 Foot

Function Description

Exit Only - No Trim

ANSI Function

01

Sub-Series

EDT_Concealed_Ver_Rod_Devices_Von_Duprin_399

Trim Style

EO

ADA Compliant

No

Device Centerline From Finished Floor

39-13/16 Inch

Application

Single and Double Doors

Vertical Rod Adjustment

3/8 Inch

Device Trim Function

No Outside Trim

Function Family

Exit Only-No Trim

Standards

UL Listed

Device Bar Projection

Crossbar Neutral: 3-3/4 Inch; Crossbar Depressed: 2-3/8 Inch

Features

Narrow Stile; Field Reversible; Crossbar Length 42" for 4' Door

Strike Type

Top: 471U Unfinished; Bottom: 304L Unfinished

Bolt Throw

1/2 Inch

Door Material

Metal

Included Components

Fasteners and Sex Bolts (SNB)

Finish Family

Dark Bronze

Product Overview
5547 SeriesConcealed Vertical Rod Exit Device

5547 Concealed vertical rod devices for use on single or double metal doors. UL listed for accident hazard installations and fits door stiles as narrow as 1 3/4" (44 mm). Specify for 2 1/4" door. Standard device fits 6' 8" to 8'0" door height.

Specifications: Finishes:
  • US3, US4, US10, US10B, US26, US26D
Device functions:
  • EO/DT/NL/L/TL
Crossbar length:
  • 42" (1067 mm), Handed, field reversible
Crossbar height to finished floor:
  • 36 13/16" (935 mm) at center
Lock stile case:
  • 7 1/4" x 1 3/16" x 2 1/4"
  • (184 mm x 30 mm x 57 mm)
Hinge stile case:
  • 7 1/4" x 1 3/16" x 2 1/4"
  • (184 mm x 30 mm x 57 mm)
Vertical rods-hexagon:
  • 3/8" (10 mm) adjustable top rod
Crossbar tubing:
  • 1" (25 mm)
Projection:
  • Crossbar neutral – 3 3/4" (95 mm)
  • Crossbar depressed – 2 3/8" (60 mm)
Latch bolt:
  • 1/2" (13 mm), throw
Fasteners and Sex bolts (SBN):
  • Sex nuts and bolts for mounting are included for 1 3/4"
    (44 mm) and 2 1/4" (57 mm) thick doors, when specified.
Wood frame strikes:
  • 472U for 1 3/4" door and 473U for 2 1/2" door.
Outside trim:
  • Hollow metal
  • 555NL
  • 550DT
  • 376L
  • 376Tx550DT
Electrical options:
  • RX - Crossbar monitor switch
  • E - Electric unlocking (BE trim only)
Mechanical options:
  • RCB - Reinforced crossbar
  • KN - Knurled crossbar
Strikes:
  • 471U - Top-unfinished
  • 304L - Bottom-unfinished
Dogging:
  • Hex key dogging comes standard on 5547 Series concealed vertical rod exit devices
RX - Crossbar monitor switch:
  • Signals use of an opening
  • SPDT switch to monitor crossbar
