Features
Base Material
Brass
Tip Style
Standard
Package Qty
1
Knuckles
5
Bearing Type
Ball Bearing
Hinge Type
Hinge, Full Mortise
Mounting Style
Square
Color Code
606/US4
Color
Satin Brass
Weight
Standard Weight
Width
4-1/2 In.
Pin Type
(NRP) Non Removable
Height
4-1/2 In.
Warranty
1 Year
Hinge Pin Type
Non-Removable
Function
Standard Weight Full Mortise
Number of Knuckles
5
Finish Description
Satin Brass
Finish Family
Satin Brass
Included Components
Fasteners/Screws
Hinge Size
4-1/2 x 4-1/2 Inch
Product Material
Brass
Recommended For
Medium Weight Doors; Medium-Frequency Usage
Number of Mounting Holes
8
Standards
ANSI/BHMA A156.1; ANSI/BHMA 156.7; UL Listed
Hinge Corner
Square Corner
Function Family
Hinge/Pivot
Features
Standard Weight; Two Ball Bearing Assemblies; Non-Removable Pin
Product Type
Hinge/Pivot
Series
5BB1 Series
Manufacturer Parent
Allegion
Sub-Series
Ives-5BB1-4.5X4.5-NRP-B
Product Overview

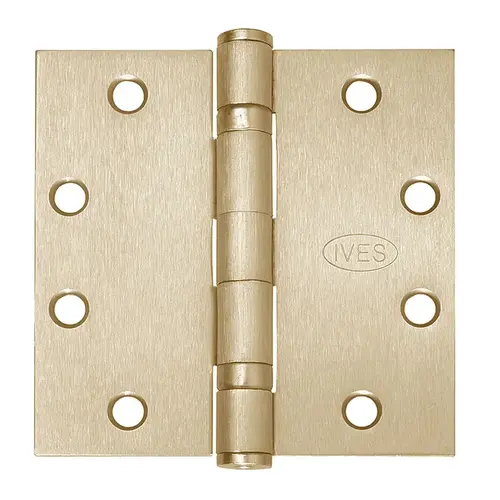

5-Knuckle Ball Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2", Non-Removeable Pin, Satin Brass
Standard pin material are: Brass Hinge – Steel Pin, Stainless Steel Hinge – Stainless Steel Pin, Steel Hinge – Steel Pin
