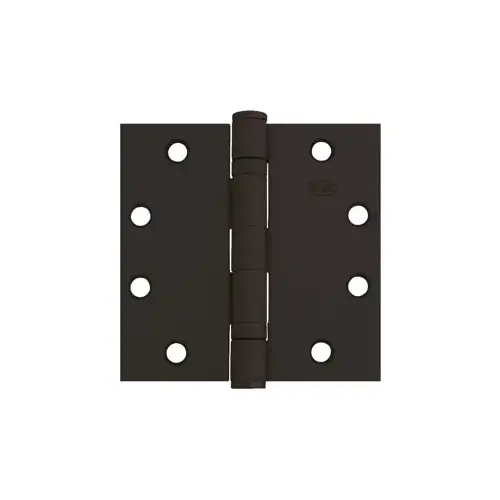

H.B. Ives 5BB1 4.5X4.5 613 5BB1 Standard Weight Full Mortise Hinge, Oil Rubbed Dark Bronze

5BB1Architectural hinges

5 Knuckle, ball bearing full mortise hinge

• Recommended for medium weight doors (<150 lbs)

• Recommended for medium frequency usage
• (<400 cycles per day)

• Made with two ball bearing assemblies

• Recommended for use with a door closer

• Packed with fasteners for hollow metal and wood doors
• 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
• 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)

Certifications:

• Certified to ANSI/BHMA A156.1 for performance standards

• Meets ANSI/BHMA 156.7 for template hinge dimensions

• UL Classified for windstorm rated assemblies - R37965

• UL Listed, 3 hour fire doors

Material substrate:

• Made from brass, 1040 steel, or 304 series stainless steel

Options: NRP:

• Non-removable pin

HT:

• Hospital tip

SH:

• Security stud - comes standard with NRP

RC-1/4, RC-5/8:

• Rounded corners

SEC:

• Security fasteners - pin-in-socket

TW4:

• Four wire

TW4M:

• Four wire with monitor

TW8:

• Eight wire

TW8M:

• Eight wire with monitor

MON:

• Monitor
• (not available on 3.5X3.5)

Dimensions:

• Height x Width - 3.5 x 3.5
• Size (mm) - 89 x 89
• Gauge - 0.123

• Height x Width - 4 x 4
• Size (mm) - 102 x 102
• Gauge - 0.130

• Height x Width - 4.5 x 4
• Size (mm) - 114 x 102
• Gauge - 0.134

• Height x Width - 4.5 x 4.5
• Size (mm) - 114 x 114
• Gauge - 0.134

• Height x Width - 5 x 4.5
• Size (mm) - 127 x 114
• Gauge - 0.146

• Height x Width - 5 x 5
• Size (mm) - 127 x 127
• Gauge - 0.146

• Refer to General Hinge Information page to determine proper hinge for application

Finishes: 600:

• Description - Primer paint
• Substrate - Steel
• Finish - USP

605:

• Description - Bright brass
• Substrate - Brass
• Finish - US3

606:

• Description - Satin brass
• Substrate - Brass
• Finish - US4

610:

• Description - Satin bronze
• Substrate - Brass
• Finish - US10

613:

• Description - Oil rubbed bronze
• Substrate - Brass
• Finish - US10B

614:

• Description - Oxidized bronze
• Substrate - Brass
• Finish - US10A

616:

• Description - Blackened bronze
• Substrate - Brass
• Finish - US11

619:

• Description - Satin nickel
• Substrate - Brass
• Finish - US15

622:

• Description - Matte black
• Substrate - Brass
• Finish - B-BLK

625:

• Description - Bright chrome
• Substrate - Brass
• Finish -

626:

• Description - Satin chrome
• Substrate - Brass
• Finish - US26D

643e/716:

• Description - Aged bronze
• Substrate - Brass
• Finish - B-643e/716

629:

• Description - Bright stainless
• Substrate - Stainless steel
• Finish - US32

630:

• Description - Satin stainless
• Substrate - Stainless steel
• Finish - US32D

631:

• Description - Matte black
• Substrate - Steel
• Finish - F-BLK

632:

• Description - Bright brass
• Substrate - Steel
• Finish - US3

633:

• Description - Satin brass
• Substrate - Steel
• Finish - US4

639:

• Description - Satin bronze
• Substrate - Steel
• Finish - US10

640:

• Description - Oil rubbed bronze
• Substrate - Steel
• Finish - US10B

641:

• Description - Oxidized bronze
• Substrate - Steel
• Finish - US10A

643:

• Description - Blackened bronze
• Substrate - Steel
• Finish - US11

646:

• Description - Satin nickel
• Substrate - Steel
• Finish - US15

651:

• Description - Bright chrome
• Substrate - Steel
• Finish - US26

652:

• Description - Satin chrome
• Substrate - Steel
• Finish - US26D

643e/716:

• Description - Aged bronze
• Substrate - Steel
• Finish - F-643e/716
